PVCu Blanking Flange Table D/E

Loading...
Useful Information

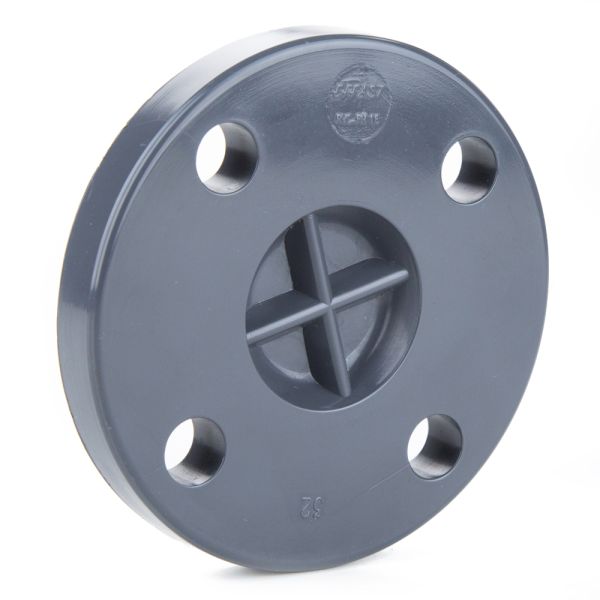

Effast plain PVC blanking flanges, drilled to BS 10 Table D & E, are available in sizes 1/2" to 6".

This PVC blanking flange is used to bolt off a section of pipework.



Manufacturer Effast
Material PVCu - polyvinyl chloride unplasticised
Pressure Rating 15 bar (1/2" to 2"), 10 bar (3" to 4"), 6 bar (6"), at 20°C
Operating Temperature 5°C to +60°C



PVC Blanking Flange Table D & E Plain Diagram

Product Code Nominal Size (inch) Table E (mm) S (mm) I (mm) f (mm) No. of Holes
374129 1/2 D / E 95 11 67 14 4
374130 3/4 D / E 105 12 73 14 4
374131 1 D / E 115 14 83 14 4
374132 1 1/4 D / E 142 15 88 18 4
374133 1 1/2 D / E 152 16 98 18 4
374134 2 D / E 165 18 115 18 4
374135 3 D / E 200 20 146 18 4
374136 4 D 220 22 178 18 4
374137 4 E 220 22 178 18 8
374138 6 D / E 285 28 235 22 8



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
374129PVCu Blanking Flange Drilled D & E 1/2" £107.24 79%
£22.52
374130PVCu Blanking Flange Drilled D & E 3/4" £122.00 79%
£25.62
374131PVCu Blanking Flange Drilled D & E 1" £132.58 79%
£27.84
374132PVCu Blanking Flange Drilled D & E 1 1/4" £139.61 79%
£29.32
374133PVCu Blanking Flange Drilled D & E 1 1/2" £150.94 79%
£31.70
374134PVCu Blanking Flange Drilled D & E 2" £168.98 79%
£35.49
374135PVCu Blanking Flange Drilled D & E 3" £298.64 79%
£62.71
374136PVCu Blanking Flange Drilled D 4" £384.18 79%
£80.68
374137PVCu Blanking Flange Drilled E 4" £384.18 79%
£80.68
374138PVCu Blanking Flange Drilled D & E 6" £674.45 79%
£141.64
