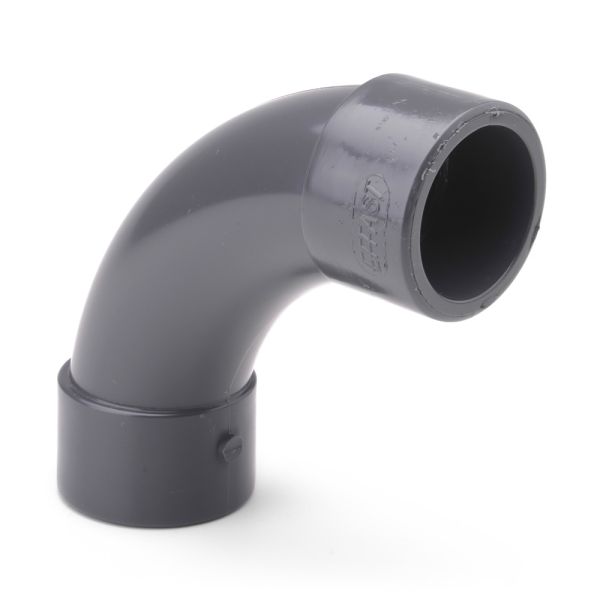

PVCu Short Radius Bend 90° Plain

Skip to the beginning of the images gallery

Useful Information

Effast plain PVC cross 90° fittings are available in sizes 1/2" to 4".

This fitting is used to join two lengths of PVC pipe, of the same diameters, at an angle of 90°.

Manufacturer	Effast
Material	PVCu - polyvinyl chloride unplasticised
Pressure Rating	15 bar at 20°C
Operating Temperature	5°C to +60°C

PVC Bend 90 Plain Diagram

Product Code	Nominal Size (inch)	L (mm)	Z (mm)	E (mm)
356697	1/2	17	39	27
356698	3/4	20	49	33
356699	1	23	63	41
356700	1 1/4	27	80	50
356701	1 1/2	31	100	61
356702	2	38	126	76
359402	2 1/2	44	150	90
356703	3	51	180	110
356704	4	63	220	133

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
356697	PVCu Bend 90 Swept Plain 1/2"	£16.53	78%	£3.64
356698	PVCu Bend 90 Swept Plain 3/4"	£29.79	78%	£6.55
356699	PVCu Bend 90 Swept Plain 1"	£36.19	78%	£7.96
356700	PVCu Bend 90 Swept Plain 1 1/4"	£56.67	78%	£12.47
356701	PVCu Bend 90 Swept Plain 1 1/2"	£71.72	78%	£15.78
356702	PVCu Bend 90 Swept Plain 2"	£97.90	78%	£21.54
359402	PVCu Bend 90 Swept Plain 2 1/2"	£171.39	74%	£44.56
356703	PVCu Bend 90 Swept Plain 3"	£255.06	78%	£56.11
356704	PVCu Bend 90 Swept Plain 4"	£375.39	78%	£82.59
