PVCu Reducing Adaptor Threaded M x F

Skip to the beginning of the images gallery

More Info

Useful Information

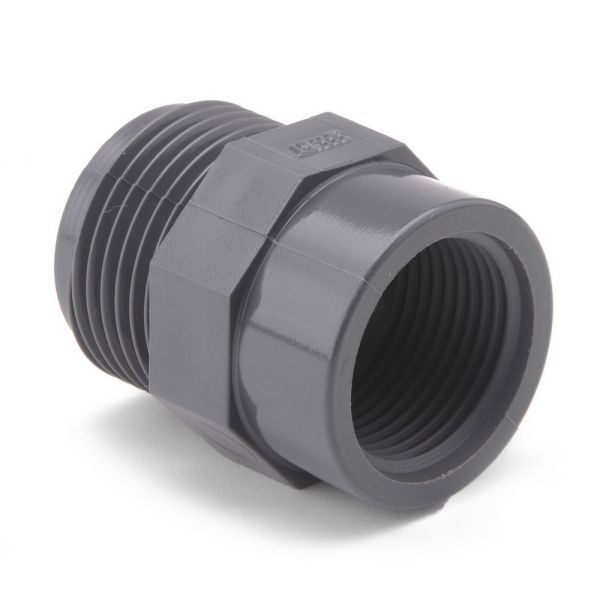

Effast threaded PVC reducing adaptor M x F fittings are available in sizes 1/2" x 3/8" to 4" x 3".

This fitting is used to connect between a BSP female thread and a larger diameter BSP male thread.

Manufacturer	Effast
Material	PVCu - polyvinyl chloride unplasticised
Pressure Rating	15 bar at 20°C
Operating Temperature	5°C to +60°C

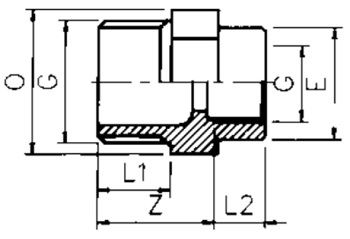

PVC Reducing Adaptor M x F Threaded Diagram

Product Code	Nominal Size (Inch)	L1 (mm)	L2 (mm)	Z (mm)	E (mm)	O (mm)
357101	1/2 x 3/8	15	11	24	23	24
357102	3/4 x 3/8	16	11	25	23	30
357103	3/4 x 1/2	16	15	26	28	30
357104	1 x 3/8	19	11	28	23	36
357105	1 x 1/2	19	15	29	28	39
357106	1 x 3/4	19	16	30	34	36
357107	1 1/4 x 1/2	21	15	33	28	46
357108	1 1/4 x 3/4	21	16	33	34	46
357109	1 1/4 x 1	21	19	33	42	46
357110	1 1/2 x 3/4	21	16	34	34	50
357111	1 1/2 x 1	21	19	34	42	50
357112	1 1/2 x 1 1/4	21	21	34	51	55
357113	2 x 1	26	19	37	42	65
357114	2 x 1 1/4	26	21	37	51	65
357115	2 x 1 1/2	26	21	37	58	65
359842	2 1/2 x 1 1/4	30	21	43	51	80
359843	2 1/2 x 1 1/2	30	21	43	58	80
359844	2 1/2 x 2	30	26	43	72	80
359845	3 x 1 1/2	33	21	47	58	95
359846	3 x 2	33	26	47	72	95
359847	3 x 2 1/2	33	30	47	89	95
359848	4 x 2	39	26	53	72	120
359849	4 x 2 1/2	39	30	53	89	120
359850	4 x 3	39	33	53	103	120

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
357101	PVCu Reducing Piece Male x Female Threaded 1/2" x 3/8"	£7.76	74%	£2.02
357102	PVCu Reducing Piece Male x Female Threaded 3/4" x 3/8"	£11.64	74%	£3.03
357103	PVCu Reducing Piece Male x Female Threaded 3/4" x 1/2"	£11.64	74%	£3.03
357104	PVCu Reducing Piece Male x Female Threaded 1" x 3/8"	£15.61	74%	£4.06
357105	PVCu Reducing Piece Male x Female Threaded 1" x 1/2"	£15.61	74%	£4.06
357106	PVCu Reducing Piece Male x Female Threaded 1" x 3/4"	£15.61	74%	£4.06
357107	PVCu Reducing Piece Male x Female Threaded 1 1/4" x 1/2"	£18.81	74%	£4.89
357108	PVCu Reducing Piece Male x Female Threaded 1 1/4" x 3/4"	£18.81	74%	£4.89
357109	PVCu Reducing Piece Male x Female Threaded 1 1/4" x 1"	£18.81	74%	£4.89
357110	PVCu Reducing Piece Male x Female Threaded 1 1/2" x 3/4"	£22.72	74%	£5.91
357111	PVCu Reducing Piece Male x Female Threaded 1 1/2" x 1"	£22.72	74%	£5.91
357112	PVCu Reducing Piece Male x Female Threaded 1 1/2" x 1 1/4"	£22.72	74%	£5.91
357113	PVCu Reducing Piece Male x Female Threaded 2" x 1"	£36.46	74%	£9.48
357114	PVCu Reducing Piece Male x Female Threaded 2" x 1 1/4"	£36.46	74%	£9.48
357115	PVCu Reducing Piece Male x Female Threaded 2" x 1 1/2"	£36.46	74%	£9.48
359842	PVCu Reducing Piece Male x Female Threaded 2 1/2" x 1 1/4"	£48.80	74%	£12.69
359843	PVCu Reducing Piece Male x Female Threaded 2 1/2" x 1 1/2"	£48.80	74%	£12.69
359844	PVCu Reducing Piece Male x Female Threaded 2 1/2" x 2"	£48.80	74%	£12.69
359845	PVCu Reducing Piece Male x Female Threaded 3" x 1 1/2"	£60.65	74%	£15.77
359846	PVCu Reducing Piece Male x Female Threaded 3" x 2"	£60.65	74%	£15.77
359847	PVCu Reducing Piece Male x Female Threaded 3" x 2 1/2"	£60.65	74%	£15.77
359848	PVCu Reducing Piece Male x Female Threaded 4" x 2"	£97.80	74%	£25.43
359849	PVCu Reducing Piece Male x Female Threaded 4" x 2 1/2"	£97.80	74%	£25.43
359850	PVCu Reducing Piece Male x Female Threaded 4" x 3"	£97.80	74%	£25.43
