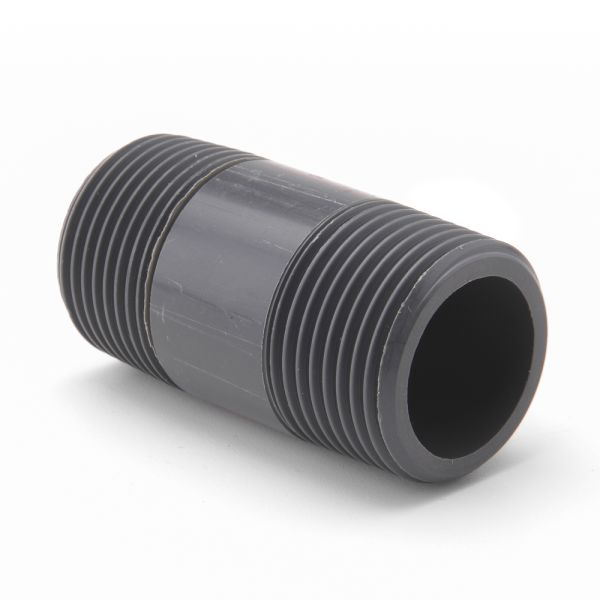

PVCu Barrel Nipple Threaded
Useful Information
Effast threaded PVC barrel nipple fittings are available in sizes 1/4" to 4".
This fitting is used to connect between two BSP female threads.
| Manufacturer | Effast |
| Material | PVCu - polyvinyl chloride unplasticised |
| Pressure Rating | 15 bar at 20°C |
| Operating Temperature | 5°C to +60°C |

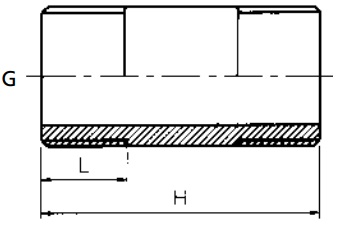

| Product Code | Nominal Size (Inch) | L (mm) | H (mm) |
| 356468 | 1/4 | - | - |
| 356469 | 3/8 | 14 | 44 |
| 356470 | 1/2 | 16 | 50 |
| 356471 | 3/4 | 19 | 56 |
| 356472 | 1 | 21 | 62 |
| 356473 | 1 1/4 | 24 | 75 |
| 356474 | 1 1/2 | 32 | 87 |
| 356475 | 2 | 29 | 87 |
| 356476 | 2 1/2 | 30 | 105 |
| 356477 | 3 | 37 | 128 |
| 356478 | 4 | 42 | 156 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
