ABS Pipe

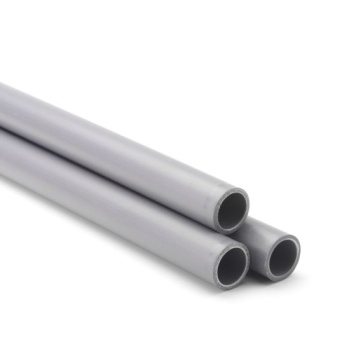

Effast ABS inch pressure pipe is available in sizes 1/2" to 8" in classes C, E and T.
The ABS pipes in this section are all British Standard size. This standard is based on the nominal bore of the pipes, not the diameter. For further clarification, click on MORE INFO + on the relevant pipe class page and refer to the table.
Approvals:
WRAS approved material |
Video - PVC vs ABS: What's the Difference?
-40°C | 20°C | 30°C | 40°C | 50°C | 60°C | 70°C | |
Class C | 9.0 bar | 9.0 bar | 7.8 bar | 6.5 bar | 5.5 bar | 4.2 bar | 2.8 bar |
Class D | 12.0 bar | 12.0 bar | 10.5 bar | 8.9 bar | 7.2 bar | 5.5 bar | 3.6 bar |
Class E | 15.0 bar | 15.0 bar | 13.0 bar | 11.0 bar | 9.0 bar | 7.0 bar | 4.8 bar |
Pipe Centres
Horizontal support centres for pipe, based on pipe carrying water at temperatures in °C. Underground installation is straightforward but detailed advice is available from our technical sales department.
Pipe Size | ABS | |||
Inch | mm | 20°C | 50°C | 70°C |
1/2 | 20 | 0.9 | 0.6 | 0.5 |
3/4 | 25 | 1.0 | 0.7 | 0.6 |
1 | 32 | 1.1 | 0.8 | 0.6 |
1 1/4 | 40 | 1.2 | 0.9 | 0.7 |
1 1/2 | 50 | 1.2 | 0.9 | 0.7 |
2 | 63 | 1.4 | 1.0 | 0.8 |
2 1/2 | 75 | 1.5 | 1.1 | 0.8 |
3 | 90 | 1.6 | 1.2 | 0.9 |
4 | 110 | 1.8 | 1.3 | 1.0 |
5 | 140 | 2.0 | 1.5 | 1.1 |
6 | 160 | 2.1 | 1.6 | 1.2 |
8 | 225 | 2.3 | 1.7 | 1.3 |
Valve or Equipment Support
Valves, heavy flanges and any ancillary equipment should be independently supported. They can also be used as anchor points to control expansion.
Joints Per Litre of Cement
An indication of the number of joints likely to be made per litre of solvent cement is:
Inch | mm | Joints |
½ - 1 | 16-32 | 400 |
1¼ - 2 | 40-63 | 175 |
3 | 75-90 | 70 |
4 | 110 | 45 |
6 | 160 | 25 |
8 | 200-225 | 15 |
10 | 250-280 | 4 |
12 | 315 | 4 |
IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
