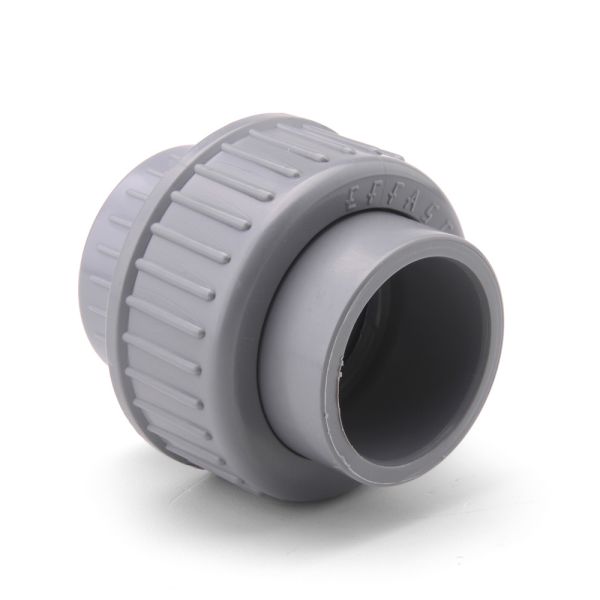

ABS Inch Union Plain
Effast plain ABS union fittings are available in sizes 1/2" to 4".
Used to join together two pieces of ABS pipe, of the same diameters, with the ability to separate later. ABS solvent cement should be used along with cleaner to glue the pipe together.
| Manufacturer | Effast |
| Material | ABS - acrylonitrile butadiene styrene |
| Pressure Rating | 16 bar at 20°C |
| Operating Temperature | -40°C to +60°C |
| Product Code | Nominal Size (inch) | A (mm) | B (mm) | Z1 (mm) | Z2 (mm) |
| 353019 | 1/2 | 40 | 47 | 3 | 10 |
| 353020 | 3/4 | 50 | 53 | 3 | 10 |
| 353021 | 1 | 57 | 64 | 8 | 11 |
| 353022 | 1 1/4 | 73 | 78 | 10 | 13 |
| 353023 | 1 1/2 | 80 | 92 | 13 | 15 |
| 353024 | 2 | 102 | 111 | 14 | 20 |
| 353025 | 2 1/2 | 135 | 107 | 8 | 13 |
| 353026 | 3 | 157 | 115 | 7 | 4 |
| 353027 | 4 | 187 | 138 | 8 | 7 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
