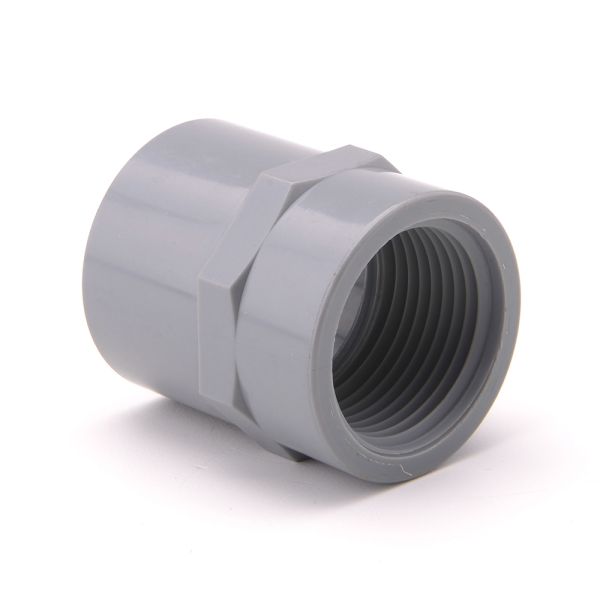

ABS Inch Socket Plain x Thread F

Skip to the beginning of the images gallery

Useful Information

Effast plain x thread ABS socket fittings are available in sizes 1/2" to 3".

Used to join together a length of plain ABS pipe or a plain fitting to a male threaded fitting or legnth of pipe, of the same diameters. ABS solvent cement should be used along with cleaner to glue the plain end and the pipe together.

Manufacturer	Effast
Material	ABS - acrylonitrile butadiene styrene
Pressure Rating	16 bar at 20°C
Operating Temperature	-40°C to +60°C

ABS Socket Plain x Thread Diagram

Product Code	Nominal Size (inch)	L1 (mm)	L2 (mm)	Z (mm)	E
353167	1/2	17	15	4	28
353168	3/4	20	16	6	34
353169	1	23	19	6	42
353170	1 1/4	27	21	8	51
353171	1 1/2	32	21	13	61
353172	2	39	26	15	89
353173	3	52	33	9	106

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
353167	ABS Socket Plain x Threaded 1/2"	£11.34	77%	£2.61
353168	ABS Socket Plain x Threaded 3/4"	£12.59	77%	£2.89
353169	ABS Socket Plain x Threaded 1"	£15.72	77%	£3.62
353170	ABS Socket Plain x Threaded 1 1/4"	£24.56	77%	£5.65
353171	ABS Socket Plain x Threaded 1 1/2"	£28.70	77%	£6.60
353172	ABS Socket Plain x Threaded 2"	£37.77	77%	£8.69
353173	ABS Socket Plain x Threaded 3"	£103.23	77%	£23.74
