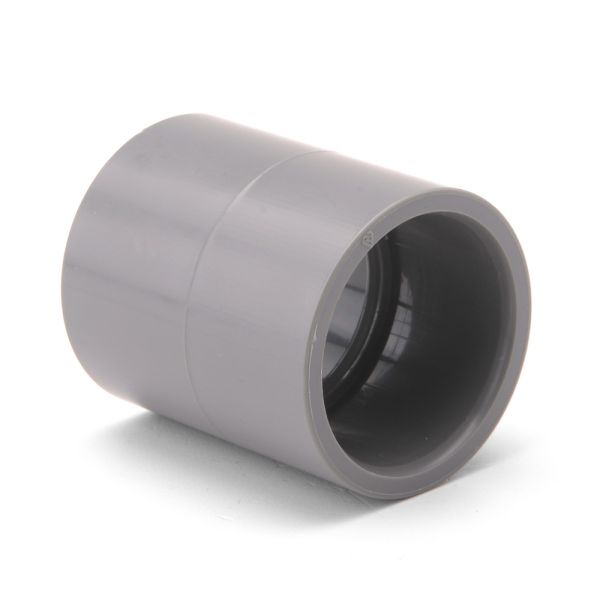

ABS Inch Socket Plain

Skip to the beginning of the images gallery

More Info

Useful Information

Effast plain ABS socket fittings are available in sizes 1/2" to 8".

This fitting is used to join two lengths of ABS pipe, of the same diameter.

Manufacturer	Effast
Material	ABS - acrylonitrile butadiene styrene
Pressure Rating	16 bar at 20°C
Operating Temperature	-40°C to +60°C

ABS Socket Plain Diagram

Product Code	Nominal Size (inch)	L (mm)	Z (mm)	E (mm)
353155	1/2	17	3	27
353156	3/4	20	3	33
353157	1	23	3	41
353158	1 1/4	27	3	52
353159	1 1/2	32	3	61
353160	2	37	3	75
353161	2 1/2	44	4	90
353162	3	52	5	107
353163	4	67	6	133
353164	5	76	8	164
353165	6	90	8	198
353166	8	120	10	253

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
353155	ABS Socket Plain 1/2"	£3.55	80%	£0.71
353156	ABS Socket Plain 3/4"	£4.05	80%	£0.81
353157	ABS Socket Plain 1"	£4.54	80%	£0.91
353158	ABS Socket Plain 1 1/4"	£7.83	80%	£1.57
353159	ABS Socket Plain 1 1/2"	£9.33	80%	£1.87
353160	ABS Socket Plain 2"	£13.28	80%	£2.66
353161	ABS Socket Plain 2 1/2"	£28.72	80%	£5.74
353162	ABS Socket Plain 3"	£52.85	80%	£10.57
353163	ABS Socket Plain 4"	£75.26	80%	£15.05
353164	ABS Socket Plain 5"	£146.05	80%	£29.21
353165	ABS Socket Plain 6"	£187.38	80%	£37.48
353166	ABS Socket Plain 8"	£493.44	80%	£98.69
