ABS Inch Reducing Bush Threaded M x F
Useful Information

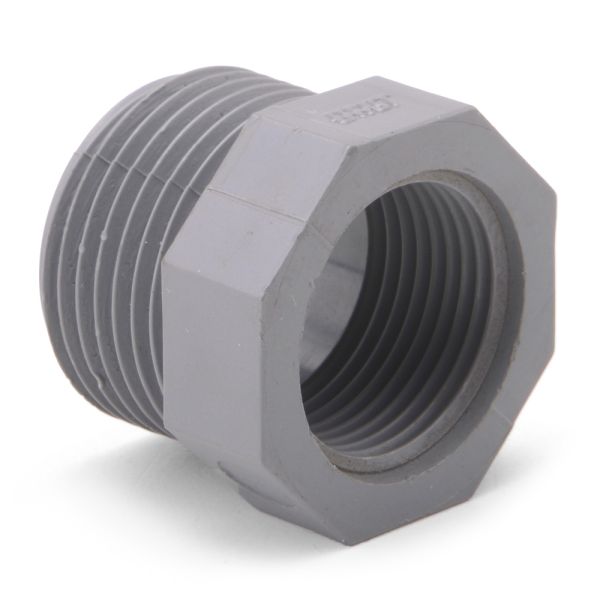

Effast ABS reducing bush fittings, with male x female BSP threaded ends, are available in sizes 3/4" x 1/2" to 4" x 3".
This fitting is used to convert from a larger ABS threaded fitting to a smaller fitting.
| Manufacturer | Effast |
| Material | ABS - acrylonitrile butadiene styrene |
| Pressure Rating | 16 bar at 20°C |
| Operating Temperature | -40°C to +60°C |
| Product Code | D1 (inch) | D2 (inch) | L1 (mm) | L2 (mm) | Z (mm) | O (mm) |
| 353228 | 3/4 | 1/2 | 16 | 15 | 13 | 30 |
| 353229 | 1 | 3/4 | 19 | 16 | 14 | 36 |
| 353230 | 1 1/4 | 1 | 21 | 19 | 16 | 46 |
| 353231 | 1 1/2 | 1 1/4 | 21 | 21 | 14 | 55 |
| 353232 | 2 | 1 1/2 | 25 | 21 | 18 | 65 |
| 353233 | 2 1/2 | 2 | 30 | 25 | 20 | 80 |
| 353234 | 3 | 2 1/2 | 33 | 30 | 20 | 95 |
| 353235 | 4 | 3 | 39 | 33 | 24 | 120 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
