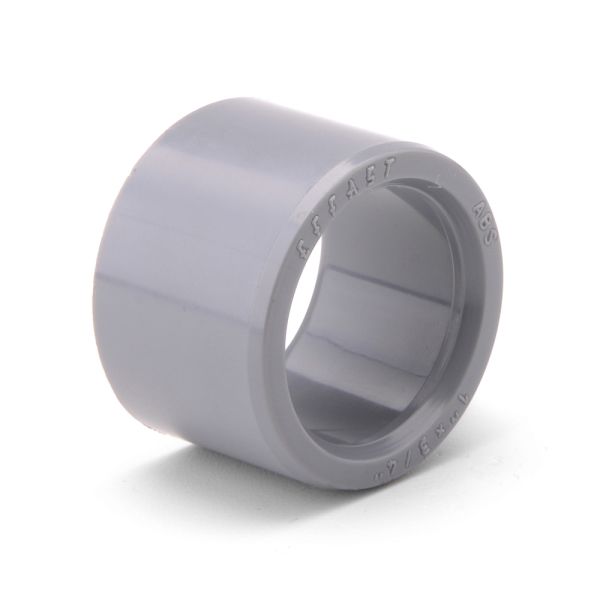

ABS Inch Reducing Bush Plain

Skip to the beginning of the images gallery

Useful Information

Effast plain ABS reducing bush fittings are available in sizes 3/4" x 1/2" to 8" x 6".

In order to reduce down one side of an ABS fitting, a plain ABS reducing bush can be glued inside the fitting socket with solvent cement

Manufacturer	Effast
Material	ABS - acrylonitrile butadiene styrene
Pressure Rating	16 bar at 20°C
Operating Temperature	-40°C to +60°C

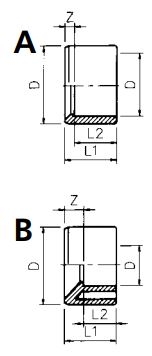

ABS Reducing Bush Plain Diagram

Product Code	Nominal Size (inch)	L1 (mm)	L2 (mm)	Z (mm)	Fig
353199	3/4 x 1/2	20	17	3	A
353200	1 x 1/2	20	17	6	B
353201	1 x 3/4	23	20	3	A
353202	1 1/4 x 1	27	23	4	A
353203	1 1/2 x 3/4	32	20	12	B
353204	1 1/2 x 1	32	23	9	B
353205	1 1/2 x 1 1/4	32	27	5	A
353206	2 x 1	39	23	16	B
353207	2 x 1 1/4	39	27	12	B
353208	2 x 1 1/2	39	32	7	A
353209	2 1/2 x 2	44	39	5	A
353210	3 x 1 1/2	52	32	20	B
353211	3 x 2	52	39	13	B
353212	3 x 2 1/2	52	44	8	A
353213	4 x 2	63	39	24	B
353214	4 x 3	63	52	11	A
353215	5 x 4	77	65	12	A
353216	6 x 4	90	63	27	B
353217	8 x 6	118	91	27	B

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
353199	ABS Reducing Bush Plain 3/4" x 1/2"	£3.50	80%	£0.70
353200	ABS Reducing Bush Plain 1" x 1/2"	£4.76	80%	£0.95
353201	ABS Reducing Bush Plain 1" x 3/4"	£4.51	80%	£0.90
353202	ABS Reducing Bush Plain 1 1/4" x 1"	£5.85	80%	£1.17
353203	ABS Reducing Bush Plain 1 1/2" x 3/4"	£7.94	80%	£1.59
353204	ABS Reducing Bush Plain 1 1/2" x 1"	£7.56	80%	£1.51
353205	ABS Reducing Bush Plain 1 1/2" x 1 1/4"	£7.94	80%	£1.59
353206	ABS Reducing Bush Plain 2" x 1"	£10.62	80%	£2.12
353207	ABS Reducing Bush Plain 2" x 1 1/4"	£10.62	80%	£2.12
353208	ABS Reducing Bush Plain 2" x 1 1/2"	£10.11	80%	£2.02
359994	ABS Reducing Bush Plain 2 1/2" x 1 1/2"	£17.97	77%	£4.13
353209	ABS Reducing Bush Plain 2 1/2" x 2"	£17.97	80%	£3.59
353210	ABS Reducing Bush Plain 3" x 1 1/2"	£31.02	80%	£6.20
353211	ABS Reducing Bush Plain 3" x 2"	£31.02	80%	£6.20
353212	ABS Reducing Bush Plain 3" x 2 1/2"	£31.02	80%	£6.20
353213	ABS Reducing Bush Plain 4" x 2"	£38.74	80%	£7.75
353214	ABS Reducing Bush Plain 4" x 3"	£38.74	80%	£7.75
353215	ABS Reducing Bush Plain 5" x 4"	£111.83	80%	£22.37
353216	ABS Reducing Bush Plain 6" x 4"	£119.27	80%	£23.85
353217	ABS Reducing Bush Plain 8" x 6"	£429.42	80%	£85.88
