ABS Inch Hexagon Nipple Threaded M

Loading...
Useful Information

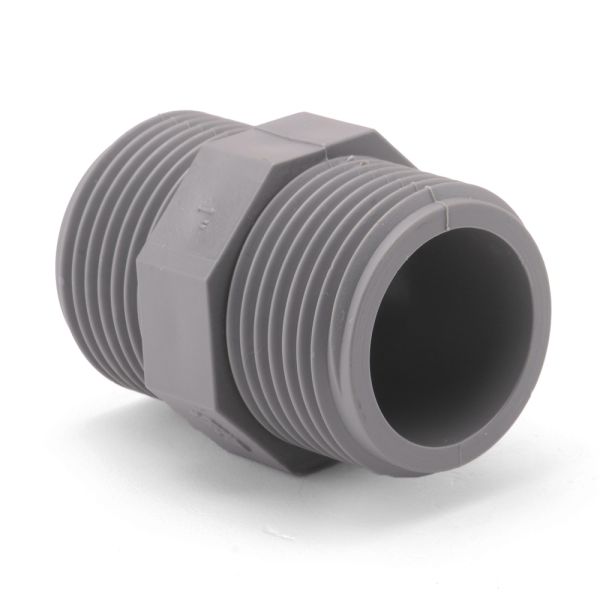

Effast ABS hexagon nipples, with BSP threaded ends, are available in sizes 1/2" to 2".

This fitting is used to connect together two ABS threaded fittings with female ends.



Manufacturer Effast
Material ABS - acrylonitrile butadiene styrene
Pressure Rating 16 bar at 20°C
Operating Temperature -40°C to +60°C



ABS Hexagon Nipple Threaded Diagram

Product Code Nominal Size (inch) L (mm) H (mm) O (mm)
353174 1/2 15 42 24
353175 3/4 16 44 30
353176 1 19 50 36
353177 1 1/4 21 58 46
353178 1 1/2 21 58 50
353179 2 26 66 65



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
353174ABS Hexagon Nipple Threaded 1/2" £7.70 77%
£1.77
353175ABS Hexagon Nipple Threaded 3/4" £10.19 77%
£2.34
353176ABS Hexagon Nipple Threaded 1" £12.90 77%
£2.97
353177ABS Hexagon Nipple Threaded 1 1/4" £17.90 77%
£4.12
353178ABS Hexagon Nipple Threaded 1 1/2" £21.21 77%
£4.88
353179ABS Hexagon Nipple Threaded 2" £25.60 77%
£5.89
