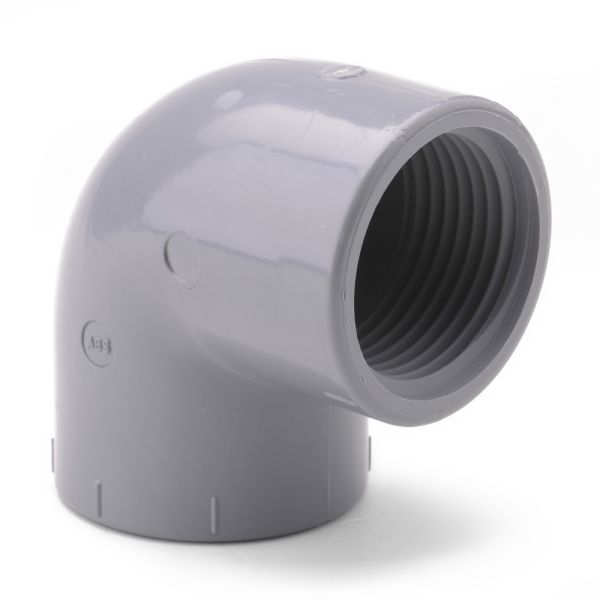

ABS Inch Elbow 90° Plain x Thread F
Effast plain x thread ABS elbow 90° fittings are available in sizes 1/2" to 3".
Used to join together a length of plain ABS pipe or a plain fitting to a male threaded fitting or length of pipe, of the same diameters, at an angle of 90°.
| Manufacturer | Effast |
| Material | ABS - acrylonitrile butadiene styrene |
| Pressure Rating | 16 bar at 20°C |
| Operating Temperature | -40°C to +60°C |
| Product Code | Nominal Size (inch) | L1 (mm) | L2 (mm) | Z1 (mm) | Z2 (mm) | E (mm) |
| 353136 | 1/2 | 17 | 15 | 11 | 12 | 28 |
| 353137 | 3/4 | 20 | 16 | 14 | 17 | 34 |
| 353138 | 1 | 23 | 19 | 17 | 20 | 42 |
| 353139 | 1 1/4 | 27 | 21 | 21 | 27 | 51 |
| 353140 | 1 1/2 | 32 | 21 | 26 | 37 | 61 |
| 353141 | 2 | 39 | 26 | 33 | 46 | 75 |
| 353142 | 3 | 51 | 35 | 47 | 66 | 106 |
