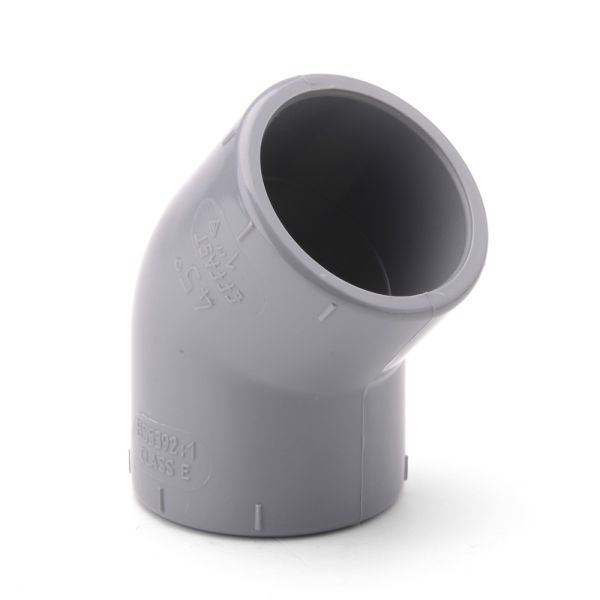

ABS Inch Elbow 45° Plain

Skip to the beginning of the images gallery

More Info

Useful Information

Effast plain ABS elbow 45° fittings are available in sizes 1/2" to 8".

This fitting is used to join two lengths of ABS pipe, of the same diameters, at an angle of 45°.

Manufacturer	Effast
Material	ABS - acrylonitrile butadiene styrene
Pressure Rating	16 bar at 20°C
Operating Temperature	-40°C to +60°C

ABS Elbow 45 Plain Diagram

Product Code	Nominal Size (inch)	L (mm)	Z (mm)	E (mm)
353143	1/2	17	5	27
353144	3/4	20	6	33
353145	1	23	8	41
353146	1 1/4	27	10	52
353147	1 1/2	32	12	61
353148	2	39	15	75
353149	2 1/2	44	18	90
353150	3	52	21	107
353151	4	63	25	133
353153	6	90	36	198
353154	8	112	52	253

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
353143	ABS Elbow 45 Plain 1/2"	£9.05	80%	£1.81
353144	ABS Elbow 45 Plain 3/4"	£9.18	80%	£1.84
353145	ABS Elbow 45 Plain 1"	£11.72	80%	£2.34
353146	ABS Elbow 45 Plain 1 1/4"	£16.73	80%	£3.35
353147	ABS Elbow 45 Plain 1 1/2"	£21.03	80%	£4.21
353148	ABS Elbow 45 Plain 2"	£28.93	80%	£5.79
353149	ABS Elbow 45 Plain 2 1/2"	£45.68	80%	£9.14
353150	ABS Elbow 45 Plain 3"	£67.93	80%	£13.59
353151	ABS Elbow 45 Plain 4"	£141.16	80%	£28.23
353153	ABS Elbow 45 Plain 6"	£293.08	80%	£58.62
353154	ABS Elbow 45 Plain 8"	£907.70	80%	£181.54
