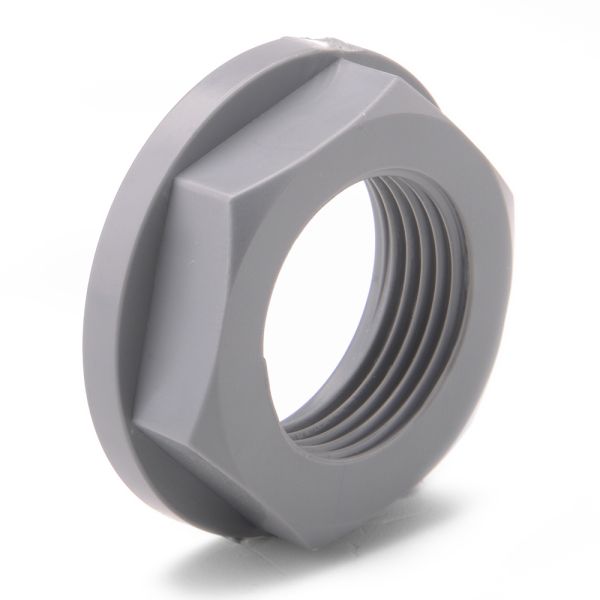

ABS Inch Backnut Threaded F
Useful Information
Effast ABS backnuts, with BSP threads, are available in sizes 1/2" to 4".
| Manufacturer | Effast |
| Material | ABS - acrylonitrile butadiene styrene |
| Pressure Rating | 16 bar at 20°C |
| Operating Temperature | -40°C to +60°C |
| Product Code | Diameter (inch) | E (mm) | H (mm) | O (mm) |
| 353180 | 1/2 | 28 | 13 | 38 |
| 353181 | 3/4 | 33 | 14 | 43 |
| 353182 | 1 | 46 | 16 | 56 |
| 353183 | 1 1/4 | 50 | 18 | 65 |
| 353184 | 1 1/2 | 60 | 19 | 72 |
| 353185 | 2 | 80 | 21 | 94 |
| 353186 | 2 1/2 | 95 | 23 | 105 |
| 353187 | 3 | 110 | 27 | 125 |
| 353188 | 4 | 140 | 31 | 154 |
