ABS Inch Adaptor Plain F x Thread M

Loading...
Useful Information

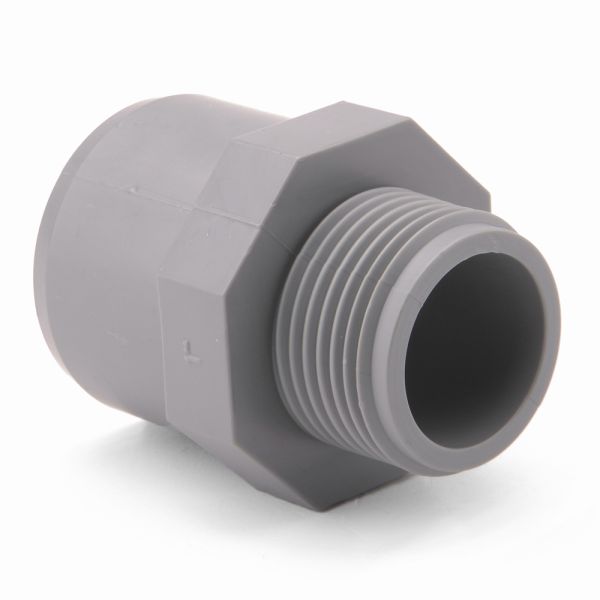

Effast ABS adaptor fittings, with plain socket x male BSP thread ends, are available in sizes 1/2" to 4".

Used to join together an ABS pipe to a fitting with a female thread.

ABS solvent cement should be used, along with cleaner, to glue the plain end and the pipe together.



Manufacturer Effast
Material ABS - acrylonitrile butadiene styrene
Pressure Rating 16 bar at 20°C
Operating Temperature -40°C to +60°C



ABS Adaptor Plain F x Thread M Diagram

Product Code Nominal Size (inch) L1 (mm) L2 (mm) L3 (mm) H (mm) O (mm)
352971 1/2 17 19 15 46 30
352972 3/4 20 22 16 50 36
352973 1 23 27 19 57 46
352974 1 1/4 27 32 21 66 55
352975 1 1/2 32 39 21 74 65
352976 2 39 44 25 84 80
352977 3 52 61 33 113 115
352978 4 63 39 39 120 130



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
352971ABS Adaptor Female Plain x Threaded Male 1/2" £6.73 76%
£1.61
352972ABS Adaptor Female Plain x Threaded Male 3/4" £8.78 76%
£2.11
352973ABS Adaptor Female Plain x Threaded Male 1" £12.07 76%
£2.90
352974ABS Adaptor Female Plain x Threaded Male 1 1/4" £16.64 76%
£3.99
352975ABS Adaptor Female Plain x Threaded Male 1 1/2" £21.65 76%
£5.20
352976ABS Adaptor Female Plain x Threaded Male 2" £31.00 76%
£7.44
352977ABS Adaptor Female Plain x Threaded Male 3" £89.13 76%
£21.39
352978ABS Adaptor Female Plain x Threaded Male 4" £119.74 76%
£28.74
