ABS Check Valve

Skip to the beginning of the images gallery

Useful Information

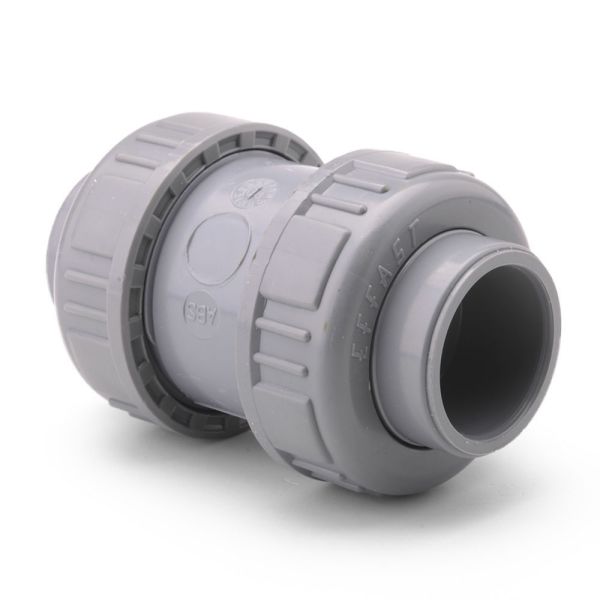

Effast ABS check valves are available in sizes 1/2" to 4".

This valve utilises a stainless steel spring and EPDM seal mechanism to allow flow in a single direction and prevent back flow.

It can be mounted horizontally or vertically and the two union connections allow it to be demounted from a pipeline for refurbishment or repair.

Manufacturer	Effast
Material	ABS - acrylonitrile butadiene styrene (valve), EPDM - ethylene propylene diene monomer rubber (seal)
Pressure Rating	16 bar at 20°C
Operating Temperature	-40°C to +60°C

Effast ABS Check Valve Diagram

Product Code	D (Inch)	L (mm)	Z (mm)	H (mm)
352952	1/2	17	46	78
352953	3/4	20	52	90
352954	1	23	60	104
352955	1 1/4	27	68	120
352956	1 1/2	31	78	140
352957	2	38	93	169

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
352952	ABS Check Valve EPDM Plain 1/2"	£71.61	70%	£21.48
352953	ABS Check Valve EPDM Plain 3/4"	£90.09	70%	£27.03
352954	ABS Check Valve EPDM Plain 1"	£91.88	70%	£27.56
352955	ABS Check Valve EPDM Plain 1 1/4"	£108.31	70%	£32.49
352956	ABS Check Valve EPDM Plain 1 1/2"	£157.19	70%	£47.16
352957	ABS Check Valve EPDM Plain 2"	£208.33	70%	£62.50
