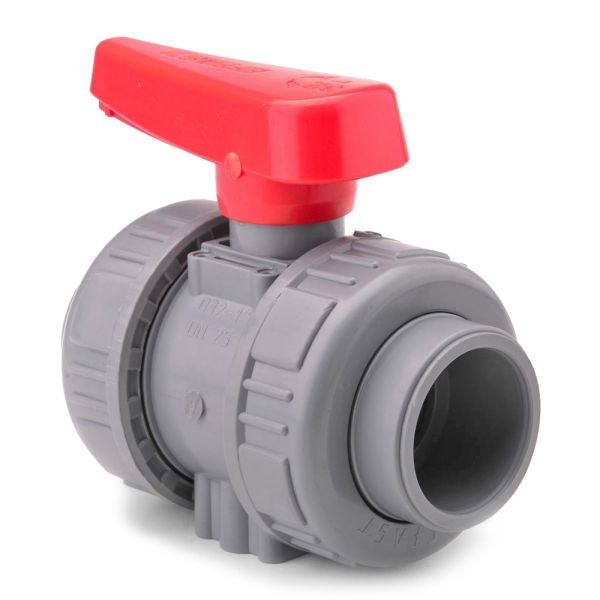

ABS 2-Way Ball Valve

Loading...
Useful Information

Effast 2-way ball valves are available in sizes 1/2" to 4".

This valve is designed with a locking end which enables you to adjust the torque on the ball in the valve, depending on the water pressure. Before assembly, you should always check the locking end and tighten if necessary. If it's too loose, the valve will leak. The handle of the valve can be removed and used as a spanner to tighten the locking end.

The two union connections allow the valve to be demounted from a pipeline for refurbishment or repair.

Although EPDM seals are supplied with this valve, FPM seal kits are also available separately.



Manufacturer Effast
Material ABS - acrylonitrile butadiene styrene (valve), EPDM - ethylene propylene diene monomer rubber (seal)
Pressure Rating 16 bar at 20°C
Operating Temperature -40°C to +60°C

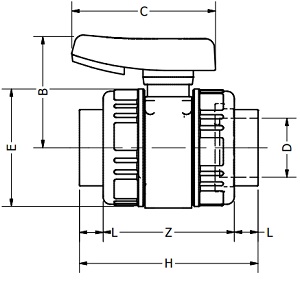

ABS-Ball-Valve-Size-Diagram

Product Code D (Inch) E (mm) B (mm) L (mm) Z (mm) H (mm) C (mm)
352925 1/2 50 51 17 46 78 65
352926 3/4 60 58 20 52 90 70
352927 1 68 65 23 60 104 82
352928 1 1/4 80 76 27 68 120 92
352929 1 1/2 94 88 31 78 140 105
352930 2 115 104 38 93 169 123
352931 2 1/2 168 137 44 136 227 168
352932 3 168 138 51 139 242 168
352933 4 210 166 63 160 282 190



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
352925ABS DU Ball Valve Industrial EPDM Plain 1/2" £76.17 70%
£22.85
352926ABS DU Ball Valve Industrial EPDM Plain 3/4" £93.30 70%
£27.99
352927ABS DU Ball Valve Industrial EPDM Plain 1" £110.77 70%
£33.23
352928ABS DU Ball Valve Industrial EPDM Plain 1 1/4" £142.17 70%
£42.65
352929ABS DU Ball Valve Industrial EPDM Plain 1 1/2" £182.05 70%
£54.62
352930ABS DU Ball Valve Industrial EPDM Plain 2" £225.47 70%
£67.64
352931ABS DU Ball Valve Industrial EPDM Plain 2 1/2" £494.41 70%
£148.32
352932ABS DU Ball Valve Industrial EPDM Plain 3" £634.13 70%
£190.24
352933ABS DU Ball Valve Industrial EPDM Plain 4" £883.88 70%
£265.17
