Useful Information

The cleanout plug is designed as a simple way of draining and rodding blocked sections of pipe.

It has a spigot, which can be fused into an enfusion socket, as well as a threaded plug (PTFE tape should be used to make a seal).

To use a cleanout plug in a 152mm system, use a 152 - 102mm reducer with a 102mm cleanout plug.

Enfusion Fittings require the Enfusion Control Unit to bond fittings to pipe.



Manufacturer Durapipe
Material Black co-polymer PP
Standards Manufactured to ISO 9001
Approvals BBA 24/7091
Operating Temperature -20°C to 100°C

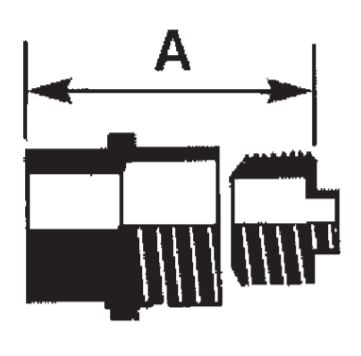

Cleaning Plug - Diagram


Product Code Nom. Size A (mm) gms
377083 38mm 160 140
377084 51mm 185 150
377085 76mm 185 280
377086 102mm 210 480

'A' dimension shows the disassembled length with a clearance of 13mm.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
377085DP Vulcathene Enfusion Cleanout Plug 76mm £92.53 25%
£69.40
377086DP Vulcathene Enfusion Cleanout Plug 102mm £100.27 25%
£75.20
