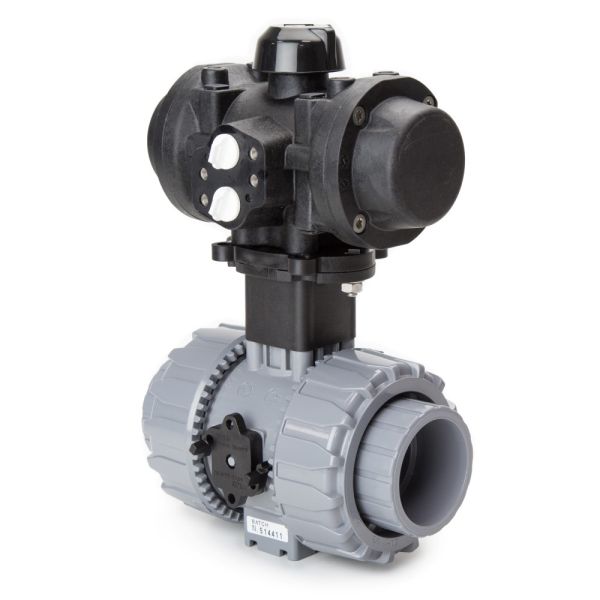

Durapipe ABS Plain DU Ball Valve Metric
Useful Information
Key Features / Tech Specs:
- Valve material: acrylonitrile butadiene styrene (ABS)
- Metric plain ends
- Sizes: 20mm to 63mm
- ATEX EX112GDc approved actuator
Useful info:
Actuator:
The pneumatic actuator from Prisma offers a rotation angle from 0-90° with a working temperature between -32°C & 90°C and a maximum pilot pressure of 8 bar.
It has a Polyamide body and is SIL2 rated meaning it is free from silicon. It has double-acting torques from 17 to 165.5Nm at 6 bar.
Valves:
The double union 2-way valves are manufactured by Durapipe and offer full DWI approval across the range.
They have an ABS body with EPDM seals and offer a maximum working pressure of 15 bar.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
