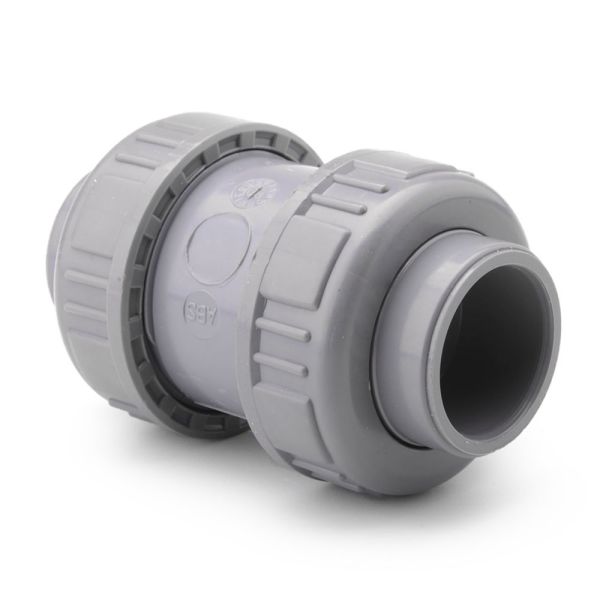

Durapipe ABS Metric SX Easyfit Check Valve
Useful Information
Key Features / Tech Specs:
- Body Material: acrylonitrile butadiene styrene (ABS)
- Seal Material : Ethylene Propylene Diene Terpolymer (EPDM)
- Sizes 20mm to 63mm available
- Max Working Pressure 16 bar
| Product Code | d (mm) | L (mm) | Z (mm) | H (mm) | E (mm) | DN |
| 369277 | 20 | 16.5 | 50 | 82 | 54 | 15 |
| 369278 | 25 | 19 | 53 | 91 | 63 | 20 |
| 369279 | 32 | 22.5 | 59 | 103 | 72 | 25 |
| 369280 | 40 | 26 | 68 | 120 | 85 | 32 |
| 369281 | 50 | 30 | 77 | 139 | 100 | 40 |
| 369282 | 63 | 36 | 98 | 174 | 118 | 50 |
Useful Info:
These ABS Check Valves utilise a stainless steel spring and EPDM seal mechanism to allow flow in a single direction and prevent backflow. They must be installed at a minimum distance of 10x the nominal diameter from the pipe flange.
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
