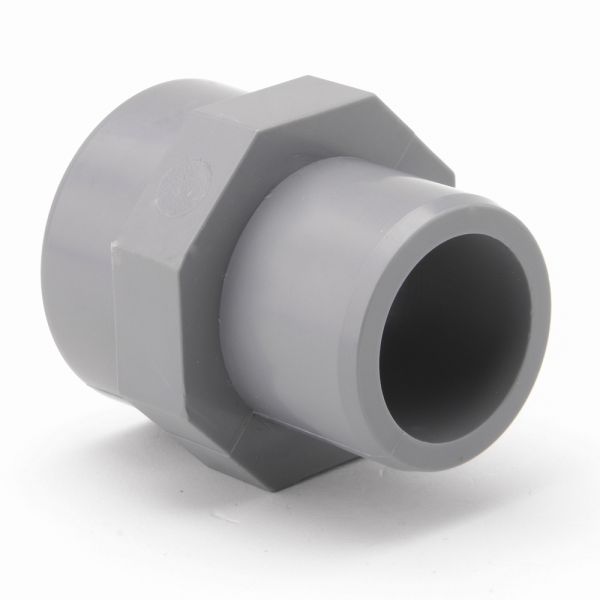

Durapipe ABS Metric Adaptor Plain x Thread F
Useful Information
Key Features / Tech Specs:
- Material: Acrylonitrile Butadiene Styrene
- Sizes 16mm x ⅜" to 63mm x 2" available
- BSI Kitemark (licence number KM 07962)
| Product Code | d2 (mm) | d1 (mm) | Thread Size (inch) | A (mm) | B (mm) | Z1 (mm) | Z1 (mm) | PN |
| 369157 | 20 | 16 | 1/2 | 30 | 35 | 15 | 21 | 10 |
| 369158 | 25 | 20 | 3/4 | 38 | 39 | 16 | 22 | 10 |
| 369159 | 32 | 25 | 1 | 45 | 45 | 18 | 26 | 10 |
| 369160 | 40 | 32 | 1 1/4 | 56 | 54 | 21 | 31 | 10 |
| 369161 | 50 | 40 | 1 1/2 | 64 | 60 | 21 | 33 | 10 |
| 369162 | 63 | 50 | 2 | 78 | 72 | 25 | 41 | 10 |
Useful Info:
Used to join together two pieces of SuperFLO ABS pipe of the same dimensions with one piece being plain and the other a male threaded piece. ABS solvent cement should be used along with cleaner to glue the pipe together. It is recommended that you use Kolmat fibreseal tape on all threaded ends.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
