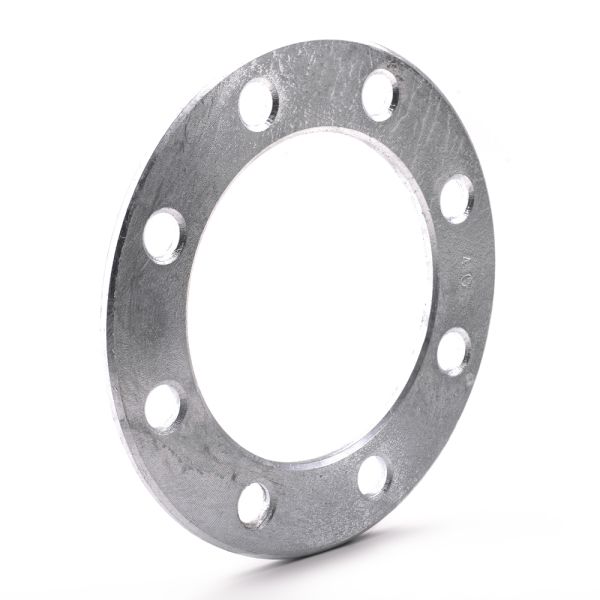

Backing Ring ANSI Class 150

Loading...
Useful Information

Key Features / Tech Specs:

  • Material: Galvanised steel
  • FDA and DWI approved
  • BSI Kitemark (licence number KM 07961)
  • Drilled to ANSI class 150

ABS-Backing-Ring-Diagram


Product Code Nominal Size (inch) A (mm) B (mm) C (mm) P (mm) No of holes Hole Diameter (mm) Bolt Size
356104 1/2 89 6 35 60 4 14 M12x50
356105 3/4 98 6 45 70 4 14 M12x50
356106 1 108 6 49 80 4 14 M12x50
356107 1 1/2 128 6 68 980 4 14 M12x50
356108 2 153 8 78 121 4 18 M16x65
356109 3 191 8 110 152 8 18 M16x65
356110 4 230 9 140 190 8 18 M16x70
356111 6 280 11 195 241 8 22 M20x90
356112 8 340 12 255 298 8 22 M20x100



Approvals:

FDA Approved Product - sold by Pipestock BSI Kitemark Approved Product - sold by Pipestock DWI Approved Product - sold by Pipestock

Useful Info:

To be used in conjunction with ABS stub flanges and gaskets, and assembled with our BZP bolt sets.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
356104DP Backing Rings Drilled to ANSI Class 150 1/2" £27.32 10%
£24.58
356105DP Backing Rings Drilled to ANSI Class 150 3/4" £28.43 10%
£25.59
356106DP Backing Rings Drilled to ANSI Class 150 1" £31.82 10%
£28.64
356107DP Backing Rings Drilled to ANSI Class 150 1 1/2" £40.06 10%
£36.06
356108DP Backing Rings Drilled to ANSI Class 150 2" £56.47 10%
£50.82
356109DP Backing Rings Drilled to ANSI Class 150 3" £85.49 10%
£76.94
356110DP Backing Rings Drilled to ANSI Class 150 4" £110.86 10%
£99.78
356111DP Backing Rings Drilled to ANSI Class 150 6" £182.71 10%
£164.44
356112DP Backing Rings Drilled to ANSI Class 150 8" £250.45 10%
£225.41
