BS4504 PN10/PN16

Loading...
Useful Information

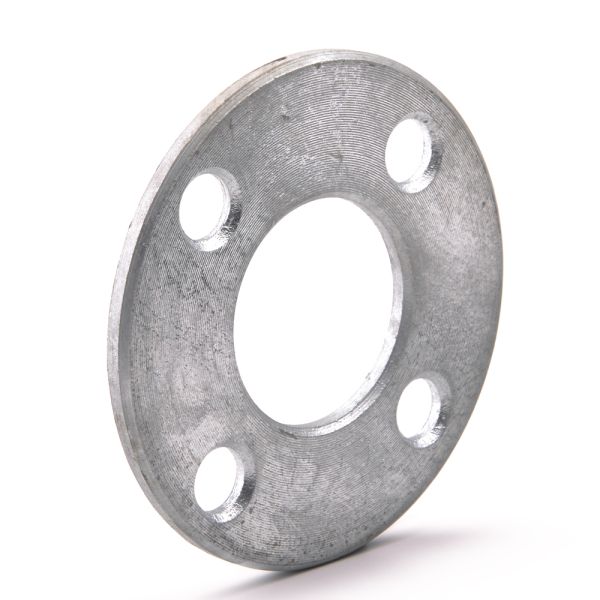

Key Features / Tech Specs:

  • Manufacturer; Durapipe
  • Material: Galvanised Mild Steel
  • Corrosion resistant.


Product Code Size A (mm) B (mm) C (mm) P (mm) L (mm) No. Holes
350226 20mm or 1/2" 95 6 28 65 14 4
350227 25mm or 3/4" 105 6 34 75 14 4
350228 32mm or 1" 115 6 42 85 14 4
350229 40mm or 1 1/4" 140 6 51 1000 18 4
350230 50mm or 1 1/2" 150 6 62 110 18 4
350231 63mm or 2" 165 8 78 125 18 4
350232 75mm or 2 1/2" 185 8 92 145 18 4
350233 90mm or 3" 200 8 110 160 180 8
350234 110mm or 4" 220 8 133 180 18 8
350235 125mm 250 8 150 210 18 8
350236 140mm or 5" 250 10 167 210 18 8
350237 160mm or 6" 285 10 190 240 22 8
350238 160mm or 6" 285 10 190 240 22 8



Useful Info:

All Durapipe pipes and fittings are made to operate continuously for 50 years at their maximum rated pressure at a working temperature of 20°C.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
350226DP Steel Backing Ring BS EN1029-1 PN10/16 20mm or 1/2" £24.58 30%
£17.20
350227DP Steel Backing Ring BS EN1029-1 PN10/16 25mm or 3/4" £25.58 30%
£17.91
350228DP Steel Backing Ring BS EN1029-1 PN10/16 32mm or 1" £28.64 30%
£20.05
350229DP Steel Backing Ring BS EN1029-1 PN10/16 40mm or 1 1/4" £32.62 30%
£22.84
350230DP Steel Backing Ring BS EN1029-1 PN10/16 50mm or 1 1/2" £40.05 30%
£28.04
350231DP Steel Backing Ring BS EN1029-1 PN10/16 63mm or 2" £51.37 30%
£35.96
350232DP Steel Backing Ring BS EN1029-1 PN10/16 75mm or 2 1/2" £69.58 30%
£48.70
350233DP Steel Backing Ring BS EN1029-1 PN10/16 90mm or 3" £76.93 30%
£53.85
350234DP Steel Backing Ring BS EN1029-1 PN10/16 110mm or 4" £78.28 30%
£54.80
350235DP Steel Backing Ring BS EN1029-1 PN10/16 125mm £103.41 30%
£72.39
350236DP Steel Backing Ring BS EN1029-1 PN10/16 140mm or 5" £138.58 30%
£97.00
350237DP Steel Backing Ring BS EN1029-1 PN10/16 160mm or 6" £164.42 30%
£115.09
