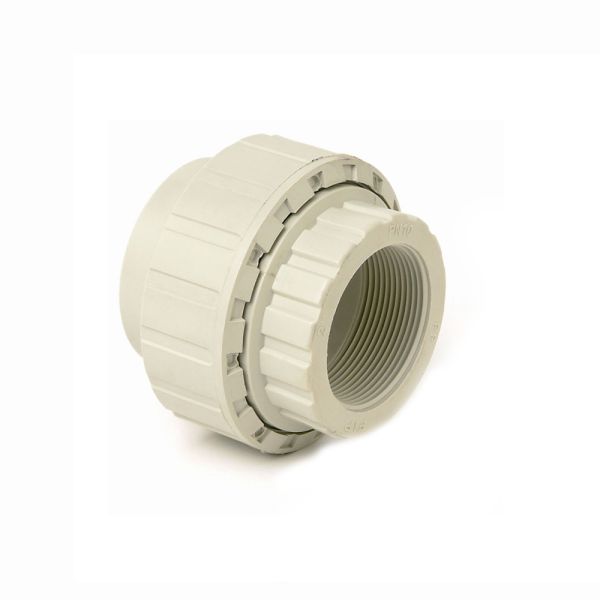

Durapipe PPh Socket Union Plain x F BSP FPM
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Size range from 20mm x 1/2" to 63mm x 2"
- Operating temperature up to 100°C
- Operating pressure rated to 10 bar
| Product Code | d (mm) | R (inch) | E (mm) | H (mm) | Z1 (mm) | Z2 (mm) | Weight (g) | di (mm) | T (mm) |
| 383672 | 20 | 1/2 | 52 | 52.2 | 6.9 | 16.5 | 51 | 20.22 | 3.53 |
| 383673 | 25 | 3/4 | 61.5 | 56 | 7.2 | 17.2 | 75 | 28.17 | 3.53 |
| 383674 | 32 | 1 | 70 | 61 | 7.5 | 17.5 | 115 | 32.93 | 3.53 |
| 383675 | 40 | 1 1/4 | 82 | 69 | 7.6 | 20.6 | 155 | 40.65 | 5.34 |
| 383676 | 50 | 1 1/2 | 90.5 | 77 | 7.7 | 21.4 | 210 | 47 | 5.34 |
| 383677 | 63 | 2 | 106 | 85.5 | 7.9 | 22.3 | 310 | 59.6 | 5.34 |
Useful Info:
This fitting joins to a polypropylene pipe via socket fusion, allowing connection to another threaded component.
