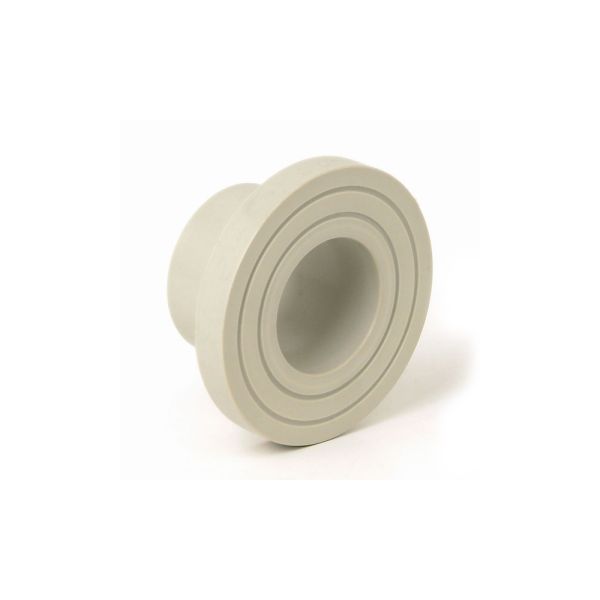

Durapipe PPh Stub Flange
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Size range from 20mm to 63mm
- Operating temperature up to 100°C
- Operating pressure rated to 10 bar
| Product Code | d (mm) | DN (mm) | b (mm) | d3 (mm) | d4 (mm) | H (mm) | Z (mm) | Weight (g) |
| 383702 | 20 | 15 | 6.8 | 27 | 45 | 20.3 | 5.5 | 12 |
| 383703 | 25 | 20 | 9 | 33 | 58 | 22.3 | 6 | 24 |
| 383704 | 32 | 25 | 10 | 41 | 68 | 24.8 | 6.5 | 36 |
| 383705 | 40 | 32 | 11 | 50 | 78 | 26.8 | 5.5 | 47 |
| 383706 | 50 | 40 | 12 | 61 | 88 | 30 | 5.5 | 63 |
| 383707 | 63 | 50 | 14 | 76 | 102 | 33.8 | 5.5 | 94 |
| 383708 | 75 | 65 | 16 | 90 | 122 | 37.8 | 6.5 | 149 |
| 383709 | 90 | 80 | 17 | 107.5 | 138 | 43.8 | 7.5 | 213 |
| 383710 | 110 | 100 | 18 | 131 | 158 | 50 | 7.5 | 297 |
Useful Info:
This stub flange is designed for use with a backing ring, along with a gasket and bolt set.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
