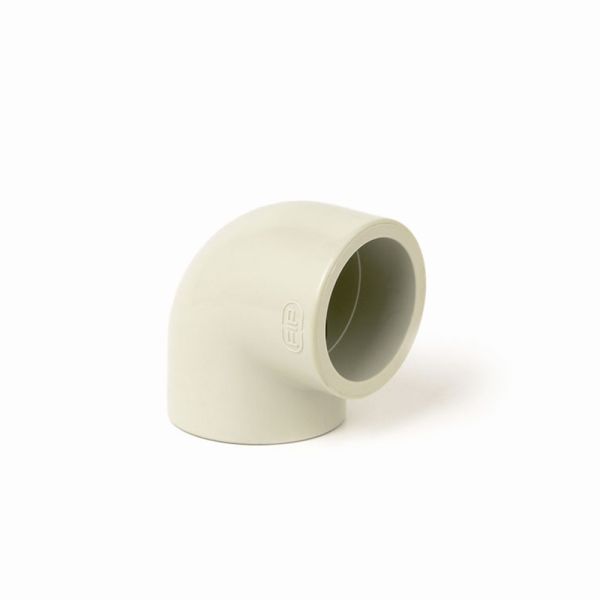

Durapipe PPh Elbow 90° Plain
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Size range from 20mm to 110mm
- Operating temperature up to 100°C
- Operating pressure rated to 10 bar
| Product Code | d (mm) | E (mm) | H (mm) | Z (mm) | Weight (g) |
| 383627 | 20 | 27.5 | 27.5 | 13 | 14 |
| 383628 | 25 | 33.5 | 32 | 16 | 23 |
| 383629 | 32 | 41.5 | 37 | 20 | 37 |
| 383630 | 40 | 51.5 | 42.5 | 22 | 64 |
| 383631 | 50 | 63.5 | 51 | 27.5 | 105 |
| 383632 | 63 | 78.5 | 61 | 33.5 | 180 |
| 383633 | 75 | 92.5 | 73 | 42 | 300 |
| 383634 | 90 | 110.5 | 84.5 | 49 | 455 |
| 383635 | 110 | 135 | 100.5 | 59 | 815 |
Useful Info:
This fitting is to join two polypropylene pipes at an angle of 90°, via socket fusion.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
