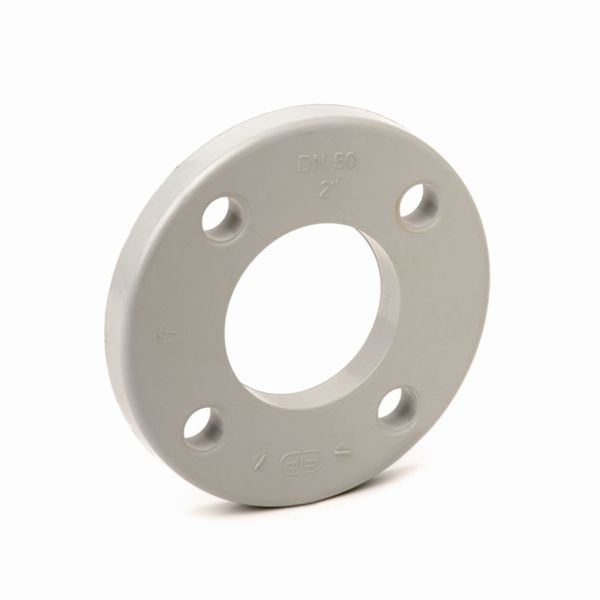

Durapipe PPh Backing Ring DIN 2501 PN10/16

Loading...
Useful Information

Key Features / Tech Specs & Dimensions:

  • Manufacturer: Durapipe
  • Material: polypropylene, steel (core)
  • DIN 2501 flange size
  • Drilled to PN10/16

Durapipe Polypropylene Backing Ring DIN 2501 PN10/16

Product Code d (mm) DN (mm) b (mm) k (mm) d2 (mm) d6 (mm) D (mm) Number of Holes Bolt Size Nominal Torque (Mnom) Weight (g)
350701 20 15 12 65 14 28 95 4 M12 15 290
350702 25 20 14 75 14 34 105 4 M12 15 410
350703 32 25 14 85 14 42 115 4 M12 15 610
350704 40 32 16 100 18 51 140 4 M16 20 880
350705 50 40 16 110 18 62 150 4 M16 30 810
350706 63 50 19 125 18 78 165 4 M16 35 940
350707 75 65 19 145 18 92 185 4 M16 40 1210
350708 90 80 21 160 18 108 200 8 M16 40 1480
350709 110 100 22 180 18 128 220 8 M16 40 1680
350710 160 150 27 240 22 178 285 8 M20 60 3890

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
350701DP PP/FRP Steel Core Backing Rings Drilled PN10/16 20mm £28.17 20%
£22.54
350702DP PP/FRP Steel Core Backing Rings Drilled PN10/16 25mm £30.90 20%
£24.72
350703DP PP/FRP Steel Core Backing Rings Drilled PN10/16 32mm £48.02 20%
£38.42
350704DP PP/FRP Steel Core Backing Rings Drilled PN10/16 40mm £48.02 20%
£38.42
350705DP PP/FRP Steel Core Backing Rings Drilled PN10/16 50mm £56.30 20%
£45.04
350706DP PP/FRP Steel Core Backing Rings Drilled PN10/16 63mm £69.85 20%
£55.88
350707DP PP/FRP Steel Core Backing Rings Drilled PN10/16 75mm £77.35 20%
£61.88
350708DP PP/FRP Steel Core Backing Rings Drilled PN10/16 90mm £92.06 20%
£73.65
350709DP PP/FRP Steel Core Backing Rings Drilled PN10/16 110mm £111.14 20%
£88.91
350710DP PP/FRP Steel Core Backing Rings Drilled PN10/16 160mm £196.18 20%
£156.94
