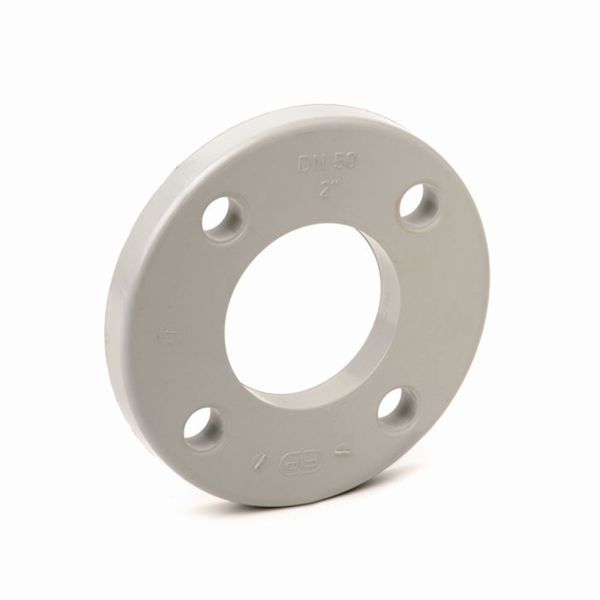

Durapipe PPh Backing Ring ANSI
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Material: polypropylene, steel (core)
- Drilled to ANSI 150 flange standard
| Product Code | d (mm) | DN (inch) | b (mm) | K (mm) | K (inch) | d2 (mm) | d2 (inch) | d6 (mm) | D (mm) | Number of Holes | Bolt Size | Nominal Torque (Mnom) | Weight (g) |
| 350711 | 20 | 1/2 | 12 | 60.45 | 2 3/8 | 16 | 5/8 | 28 | 95 | 4 | M12 | 15 | 220 |
| 350712 | 25 | 3/4 | 12 | 69.85 | 2 3/4 | 16 | 5/8 | 34 | 102 | 4 | M12 | 15 | 240 |
| 350713 | 32 | 1 | 16 | 79.25 | 3 1/8 | 16 | 5/8 | 42 | 114 | 4 | M12 | 15 | 390 |
| 350714 | 40 | 1 1/4 | 16 | 88.9 | 3 1/2 | 16 | 5/8 | 51 | 130 | 4 | M16 | 25 | 510 |
| 350715 | 50 | 1 1/2 | 18 | 98.55 | 3 7/8 | 16 | 5/8 | 62 | 133 | 4 | M16 | 35 | 580 |
| 350716 | 63 | 2 | 18 | 120.65 | 4 3/4 | 20 | 3/4 | 78 | 162 | 4 | M16 | 35 | 860 |
| 350717 | 75 | 2 1/2 | 18 | 139.7 | 5 1/2 | 20 | 3/4 | 92 | 184 | 4 | M16 | 40 | 1100 |
| 350718 | 90 | 3 | 18 | 152.4 | 6 | 20 | 3/4 | 111 | 194 | 4 | M16 | 40 | 1040 |
| 350719 | 110 | 4 | 18 | 190.5 | 7 1/2 | 20 | 3/4 | 133 | 229 | 8 | M16 | 40 | 1620 |
| 350720 | 160 | 6 | 24 | 241.3 | 9 1/2 | 22 | 7/8 | 178 | 283 | 8 | M20 | 60 | 2480 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
