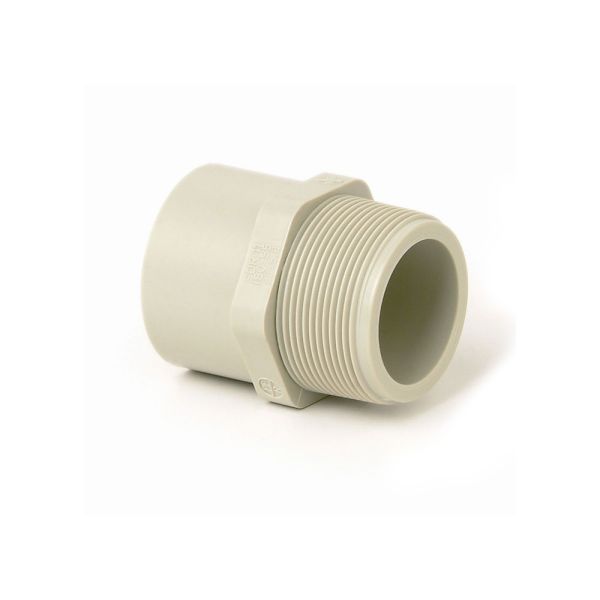

Durapipe PPh Adaptor Plain x M BSP
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Size range from 20mm x 1/2" to 63mm x 2"
- Operating temperature up to 100°C
- Operating pressure rated to 10 bar
| Product Code | d (mm) | R (inch) | S (mm) | I1 (mm) | I2 (mm) | I (mm) | Weight (g) |
| 383690 | 20 | 1/2 | 1.9 | 19 | 18 | 46 | 10 |
| 383691 | 25 | 3/4 | 2.3 | 22 | 20 | 51 | 10 |
| 383692 | 32 | 1 | 2.9 | 28 | 24 | 61 | 30 |
| 383693 | 40 | 1 1/4 | 3.7 | 29 | 26 | 66 | 40 |
| 383694 | 50 | 1 1/2 | 4.6 | 32 | 28 | 74 | 60 |
| 383695 | 63 | 2 | 5.8 | 35 | 31 | 80 | 90 |
Useful Info:
This fitting joins a polypropylene pipe to a female threaded component.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
