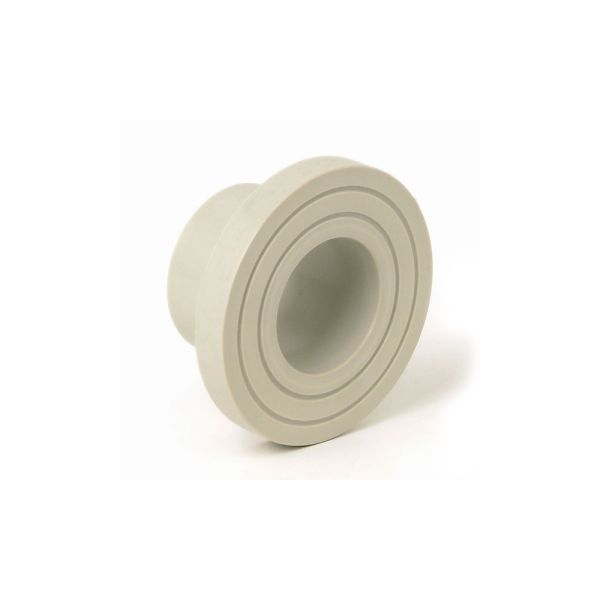

Durapipe PPh Stub Flange PN10
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Operating temperature up to 100°C
- Operating pressure rated to 10 bar
| Product Code | d (mm) | d3 (mm) | d4 (mm) | Z (mm) | h1 (mm) | h3 (mm) | S (mm) | Weight (g) |
| 383839 | 20 | 27 | 45 | 50 | 7 | 30 | 1.9 | 15 |
| 383840 | 25 | 33 | 58 | 50 | 9 | 26 | 2.3 | 30 |
| 383841 | 32 | 40 | 68 | 50 | 10 | 25 | 2.9 | 45 |
| 383842 | 40 | 50 | 78 | 50 | 11 | 24 | 3.7 | 66 |
| 383843 | 50 | 61 | 88 | 50 | 12 | 21 | 4.6 | 87 |
| 383844 | 63 | 75 | 102 | 50 | 14 | 16 | 5.8 | 129 |
| 383847 | 110 | 125 | 158 | 80 | 18 | 27 | 10 | 430 |
| 383848 | 125 | 132 | 158 | 80 | 25 | 35 | 11.4 | 490 |
| 383850 | 160 | 175 | 212 | 80 | 25 | 27 | 14.6 | 915 |
| 383851 | 200 | 232 | 268 | 100 | 32 | 28 | 18.2 | 1900 |
Useful Info:
This stub flange is designed for use with a backing ring, along with a gasket and bolt set.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
