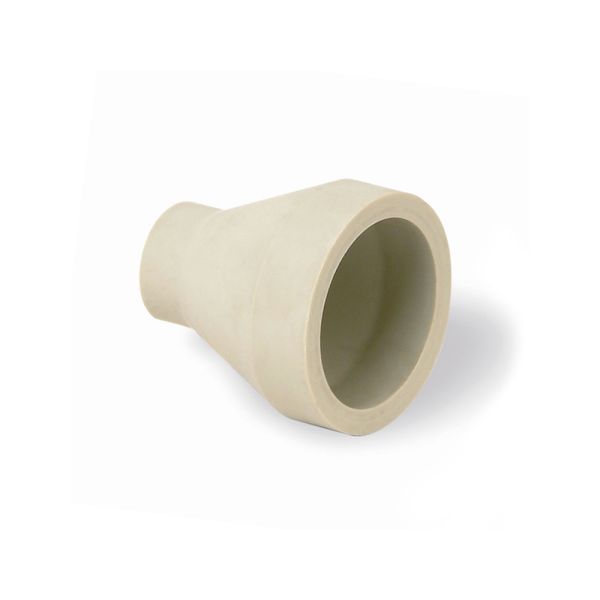

Durapipe PPh Reducing Coupling Concentric Plain PN10
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Operating temperature up to 100°C
- Operating pressure rated to 10 bar
| Product Code | d1 (mm) | d2 (mm) | Z (mm) | I1 (mm) | I2 (mm) | S1 (mm) | S2 (mm) | Weight (g) |
| 383999 | 25 | 20 | 37 | 12 | 12 | 2.3 | 1.9 | 5 |
| 384000 | 32 | 20 | 43 | 12 | 12 | 2.9 | 1.9 | 8 |
| 384001 | 32 | 25 | 43 | 12 | 12 | 2.9 | 2.3 | 10 |
| 384002 | 40 | 20 | 50 | 12 | 12 | 3.7 | 1.9 | 13 |
| 384003 | 40 | 25 | 50 | 12 | 12 | 3.7 | 2.3 | 15 |
| 384004 | 40 | 32 | 50 | 12 | 12 | 3.7 | 3 | 18 |
| 384005 | 50 | 25 | 55 | 12 | 12 | 4.6 | 2.3 | 23 |
| 384006 | 50 | 32 | 55 | 12 | 12 | 4.6 | 3 | 25 |
| 384008 | 63 | 32 | 65 | 16 | 12 | 5.8 | 3 | 43 |
| 384009 | 63 | 40 | 65 | 16 | 12 | 5.8 | 3.7 | 50 |
| 384010 | 63 | 50 | 65 | 16 | 12 | 5.8 | 4.6 | 55 |
| 384011 | 75 | 32 | 80 | 19 | 12 | 6.8 | 3 | 70 |
| 384012 | 75 | 40 | 71 | 19 | 12 | 6.8 | 3.7 | 71 |
| 384014 | 75 | 63 | 71 | 19 | 16 | 6.8 | 5.8 | 89 |
| 384015 | 90 | 50 | 80 | 22 | 12 | 8.2 | 4.6 | 125 |
| 384016 | 90 | 63 | 80 | 22 | 16 | 8.2 | 5.8 | 129 |
| 384020 | 110 | 75 | 97 | 28 | 19 | 10 | 6.9 | 160 |
| 384021 | 110 | 90 | 97 | 28 | 22 | 10 | 8.2 | 140 |
| 384022 | 125 | 63 | 112 | 30 | 16 | 11.4 | 5.8 | 180 |
| 384030 | 160 | 90 | 135 | 40 | 22 | 14.6 | 8.2 | 700 |
| 384031 | 160 | 110 | 124 | 40 | 28 | 14.6 | 10 | 430 |
| 384041 | 250 | 225 | 182 | 60 | 55 | 22.7 | 20.5 | 1040 |
Useful Info:
This fitting is to join two polypropylene pipes of different diameters, via butt fusion.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
