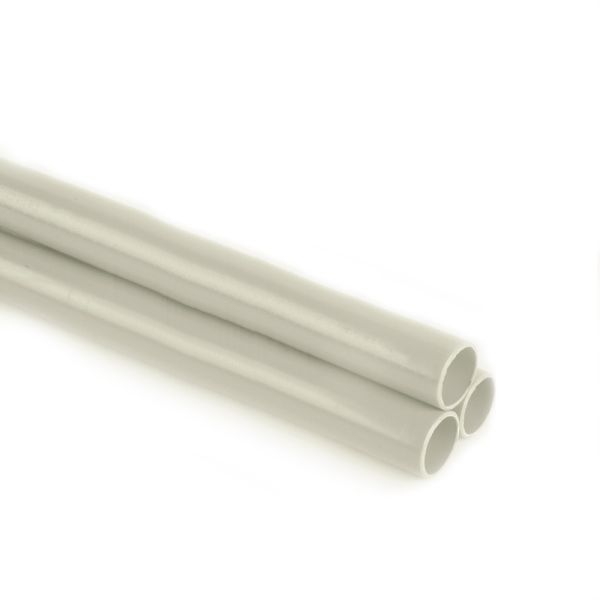

Durapipe PPh Pipe PN6
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Colour: RAL 7032 beige
- Size range from 125mm to 400mm
- Operating temperature up to 100°C
- Operating pressure rated to 6 bar
| Product Code | d (mm) | Internal Diameter (mm) | s (mm) | Weight (kg/m) | Length (m) |
| 383565 | 125 | 100 | 7.1 | 1.54 | 5 |
| 383566 | 140 | 125 | 8 | 3.2 | 5 |
| 383567 | 160 | 150 | 9.1 | 4.15 | 5 |
| 383568 | 180 | 150 | 10.2 | 5.22 | 5 |
| 383569 | 200 | 200 | 11.4 | 6.47 | 5 |
| 383570 | 225 | 200 | 12.8 | 8.19 | 5 |
| 383571 | 250 | 250 | 14.2 | 10.1 | 5 |
| 383572 | 280 | 250 | 15.9 | 12.6 | 5 |
| 383573 | 315 | 300 | 17.9 | 16 | 5 |
| 383574 | 355 | 350 | 20.1 | 20.2 | 5 |
| 383575 | 400 | 400 | 22.7 | 25.7 | 5 |
Useful Info:
Butt fusion welding involves the use of a machine which simultaneously heats the ends of the pipe and fitting until they reach a melting point. This then produces a permanent and leak-free joint between them.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
