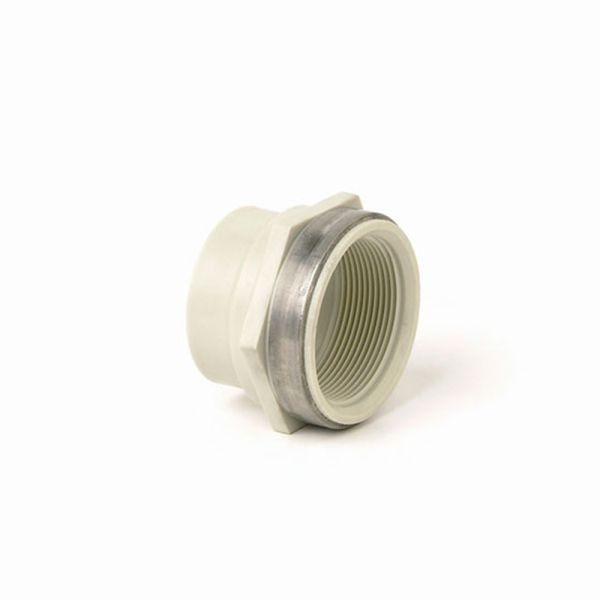

Durapipe PPh Adaptor Plain x F BSP PN10
Useful Information
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Female BSP thread
- Operating temperature up to 100°C
- Operating pressure rated to 10 bar
| Product Code | d (mm) | R (inch) | S (mm) | I1 (mm) | E (mm) | I (mm) | Weight (g) |
| 384052 | 20 | 1/2 | 1.9 | 21 | 32 | 45 | 10 |
| 384053 | 25 | 1/2 | 2.3 | 17 | 36 | 40 | 20 |
| 384055 | 32 | 3/4 | 2.9 | 12 | 41 | 36 | 25 |
| 384056 | 32 | 1 | 2.9 | 30 | 46 | 58 | 33 |
| 384059 | 50 | 1 1/4 | 4.6 | 21 | 63 | 49 | 75 |
| 384060 | 50 | 1 1/2 | 4.6 | 34 | 70 | 68 | 70 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
