Durapipe PLX Adaptor x F BSP

Loading...
Useful Information

Key Features / Tech Specs:

  • Material: Polyethylene
  • Sizes available: 32mm x 1" to 63mm x 2"
  • Pressure rated to 10 bar
  • 39.5v

PLX Adaptor


Product Code Outer Diameter (mm x inch) L (mm) l1 (mm) l2 (mm) d1 (mm) d2 (mm)
383331 32 x 1 122 83 40.5 44 39
383332 50 x 1½ 139.5 107 63.5 73 53
383333 63 x 1½ 140.5 108 64.5 85 59.5
383334 63 x 2 140.5 108 64.5 85 59.5

Useful Info:

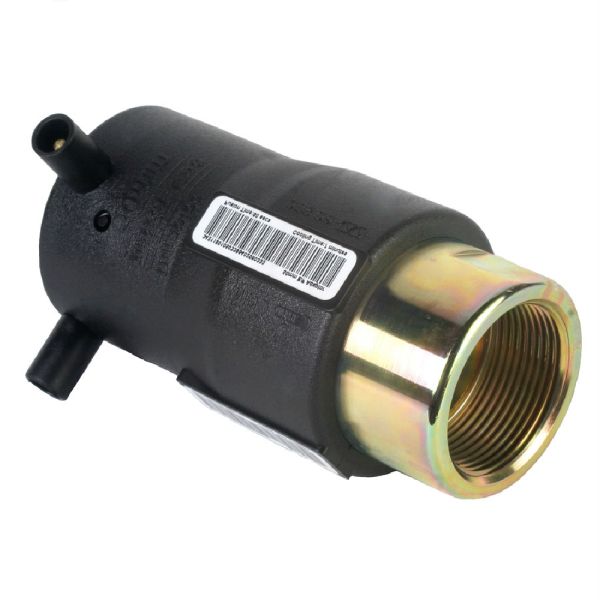

This female BSP fusion adaptor is used to connect a piece of PLX pipe to a male BSP threaded connection.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
383331DP PLX Single Wall Adaptor x Female BSP 32mm x 1" £84.67 20%
£67.73
383332DP PLX Single Wall Adaptor x Female BSP 50mm x 1 1/2" £130.72 20%
£104.58
383333DP PLX Single Wall Adaptor x Female BSP 63mm x 1 1/2" £142.99 20%
£114.39
383334DP PLX Single Wall Adaptor x Female BSP 63mm x 2" £142.99 20%
£114.39
