Durapipe PLX Elbow 45°
Useful Information
Key Features / Tech Specs:
- Material: Polyethylene
- 2 x Slip Closures required to complete elbow
- Sizes available: 32mm/40mm to 110mm/125mm
- Pressure rated to 10 bar
- 39.5v
| Product Code | Interior Pipe O.D (mm) | Outer Pipe O.D (mm) | L (mm) | l1 (mm) | l2 (mm) | l3 (mm) | d1 (mm) |
| 383394 | 32 | 40 | 84 | 50 | 42 | 40 | 63 |
| 383395 | 50 | 63 | 99 | 58 | 45 | 42 | 90 |
| 383396 | 63 | 110 | 113 | 66 | 50 | 44 | 110 |
| 383397 | 90 | 160 | 240 | 108 | 86 | 69 | 160 |
| 383398 | 110 | 160 | 240 | 108 | 82 | 70 | 160 |
Useful Info:

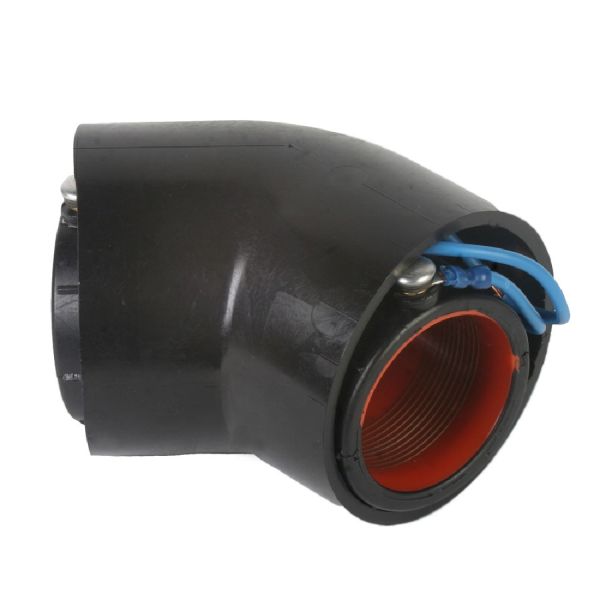

This fusion elbow is used to connect two pieces of PLX pipe of the same diameter at an angle of 45°.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
