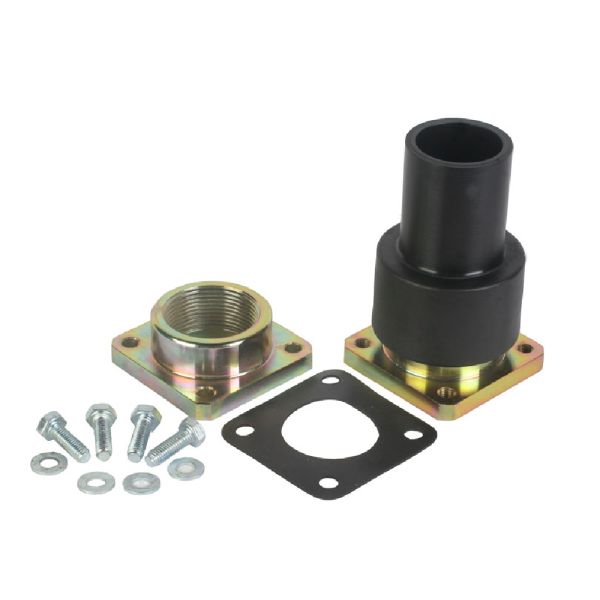

Durapipe PLX Spigot x F Compact Flange BSP
Useful Information
Key Features / Tech Specs:
- Material: Polyethylene
- Sizes available: 50mm x 1½" to 110mm x 4" available
- Pressure rated to 10 bar
- 39.5v
| Product Code | Outer Diameter (mm x inch) | L (mm) | l1 (mm) | l2 (mm) | d1 (mm) | d2 (mm) |
| 383351 | 50 x 1½ | 157 | 125 | 58 | 73 | 77 |
| 383352 | 63 x 2 | 164 | 132 | 65 | 85 | 83 |
| 383353 | 90 x 3 | 226 | 135 | 85 | 100 | 115 |
| 383354 | 110 x 4 | 211 | 145 | 75 | 125 | 145 |
Useful Info:
This female BSP flange spigot adaptor is used to connect the spigot to a PLX connection and the Female end to a male BSP threaded connection.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
