Durapipe PLX F Compact Flange BSP

Loading...
Useful Information

Key Features / Tech Specs:

  • Material: Polyethylene
  • Sizes available: 50mm x 1½" & 63mm x 2"
  • Pressure rated to 10 bar
  • 39.5v

PLX Female Flange


Product Code Outer Diameter (mm x inch) L (mm) l1 (mm) l2 (mm) d1 (mm) d2 (mm)
383339 50 x 1½ 139.5 107 63.5 73 53
383340 63 x 2 140.5 108 64.5 85 59.5

Useful Info:

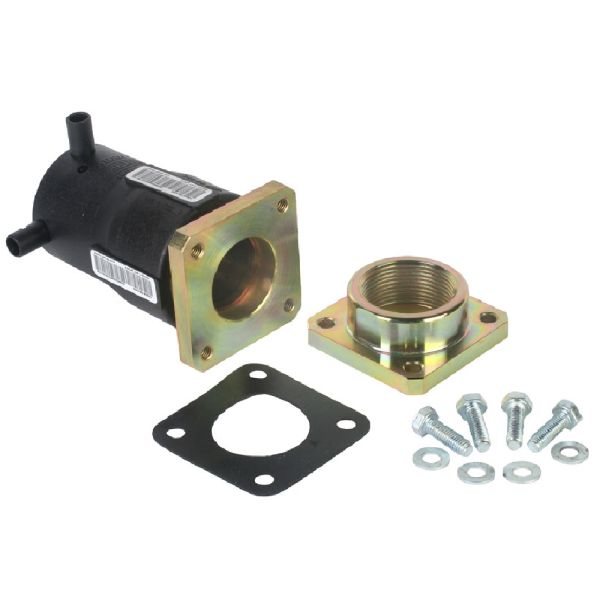

This female BSP fusion flange adaptor is used to connect a piece of PLX pipe to a male BSP threaded connection.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
383339DP PLX Single Wall Adaptor x Female Flange BSP 50mm x 1 1/2" £200.17 20%
£160.13
383340DP PLX Single Wall Adaptor x Female Flange BSP 63mm x 2" £220.65 20%
£176.52
