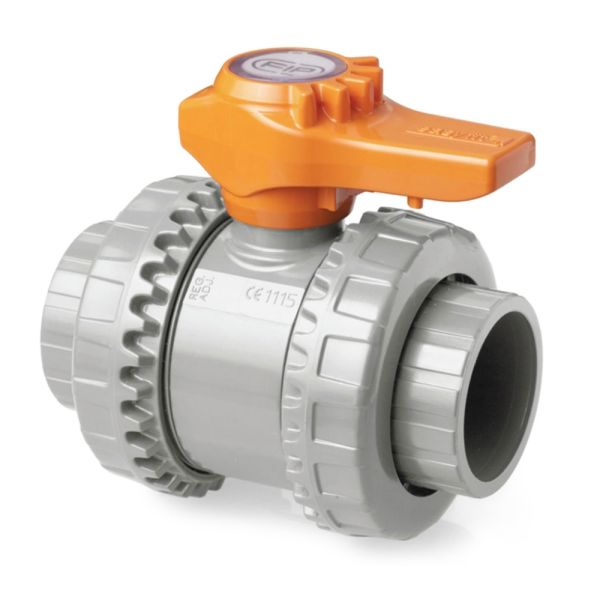

Durapipe Corzan VKD DU Ball Valve FPM

Skip to the beginning of the images gallery

Useful Information

Key Features / Tech Specs & Dimensions:

Material: chlorinated polyvinyl chloride
Seal material: FPM
VKD double union ball valve with union female ends
Maximum working pressure: 16 bar at 20°C
Available in sizes from 16mm to 110mm

Product Code	d (mm)	DN (mm)	L (mm)	Z (mm)	H (mm)	H₁(mm)	E (mm)	B (mm)	B₁(mm)	C (mm)	C₁(mm)	Pressure Rating (bar)
354588	16	10	14	75	103	65	54	54	29	67	40	16
354589	20	15	16	71	103	65	54	54	29	67	40	16
354590	25	20	19	77	115	70	65	65	34.5	85	49	16
354591	32	25	22	84	128	78	73	69.5	39	85	49	16
354592	40	32	26	94	146	88	86	82.5	46	108	64	16
354593	50	40	31	102	164	91	98	89	52	108	64	16
354594	63	50	38	123	199	111	122	108	62	134	76	16
354595	75	65	44	147	235	133	164	164	87	225	175	16
354596	90	80	51	168	270	149	203	177	105	327	272	16
354597	110	100	61	186	308	167	238	195	129	385	330	16

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These DP PVCc VKD double union ball valves are ideal for use in industrial and general purpose applications to transport demineralised water, acids, alkalis, industrial waste treatment, chemical processing, soaps, paper, pulps and effluent.

The union Fittings allow for easy maintenance of the valve without the need for additional gluing and also for demounted from a pipeline for refurbishment or repair.

The VKD design is ideally suited to withstand conditions where vibrations or thermal expansion may affect the performance of ordinary double union valves.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
354588	DP PVCc VKD Double Union Ball Valve FPM Plain 16mm	£158.83	30%	£111.18
354589	DP PVCc VKD Double Union Ball Valve FPM Plain 20mm	£159.60	30%	£111.72
354590	DP PVCc VKD Double Union Ball Valve FPM Plain 25mm	£210.08	30%	£147.06
354591	DP PVCc VKD Double Union Ball Valve FPM Plain 32mm	£247.65	30%	£173.36
354592	DP PVCc VKD Double Union Ball Valve FPM Plain 40mm	£252.29	30%	£176.60
354593	DP PVCc VKD Double Union Ball Valve FPM Plain 50mm	£346.26	30%	£242.38
354594	DP PVCc VKD Double Union Ball Valve FPM Plain 63mm	£472.41	30%	£330.68
354595	DP PVCc VKD Double Union Ball Valve FPM Plain 75mm	£1,293.87	30%	£905.71
354596	DP PVCc VKD Double Union Ball Valve FPM Plain 90mm	£1,591.01	30%	£1,113.71
354597	DP PVCc VKD Double Union Ball Valve FPM Plain 110mm	£1,931.51	30%	£1,352.05
