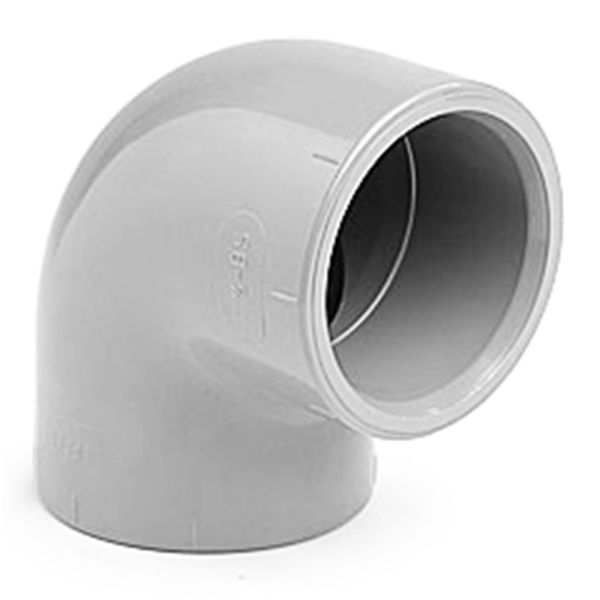

Durapipe Corzan Elbow 90

Loading...
Useful Information

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride resin and chlorine
  • Plain elbow 90° fitting
  • Pressure rated to 16 bar (up to 110mm), 160mm 10 bar rated
  • Manufactured to DIN 8063
  • Available in sizes from 16mm to 160mm

DP corzan cpvc elbow 90 plain diagram

Product Code A (mm) C (mm) Z1 (mm) Pressure Rating (bar)
351060 22 23 9 16
351061 27 27 11 16
351062 33 34 15 16
351063 41 39 17 16
351064 50 48 22 16
351065 61 58 27 16
351066 76 72 34 16
351067 91 84 40 16
351068 107 99 48 16
351069 130 121 60 16
351070 193 175 89 10



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These plain elbow 90 Corzan CPVC fittings are used to join together two pieces of Corzan CPVC pipe of the same dimensions at an angle of 90°. PVCc solvent cement should be used along with PVCc Eco-Cleaner to glue the pipe together.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
351060DP PVCc Elbow 90 Plain 16mm £6.74 30%
£4.72
351061DP PVCc Elbow 90 Plain 20mm £7.60 30%
£5.32
351062DP PVCc Elbow 90 Plain 25mm £8.50 30%
£5.95
351063DP PVCc Elbow 90 Plain 32mm £10.53 30%
£7.37
351064DP PVCc Elbow 90 Plain 40mm £19.00 30%
£13.30
351065DP PVCc Elbow 90 Plain 50mm £24.91 30%
£17.44
351066DP PVCc Elbow 90 Plain 63mm £39.96 30%
£27.97
351067DP PVCc Elbow 90 Plain 75mm £92.69 30%
£64.89
351068DP PVCc Elbow 90 Plain 90mm £152.84 30%
£106.99
351069DP PVCc Elbow 90 Plain 110mm £248.68 30%
£174.08
351070DP PVCc Elbow 90 Plain 160mm £520.84 30%
£364.59
