PVC Cross 90° Plain

Loading...
Useful Information

Technical Specification

Material Unplasticised Polyvinyl Chloride (PVC-U)
Pressure Rating 15 bar
Operating Temperature 0°C and 60°C
Installation Type Solvent Weld

Approvals

Description

A plain 90 degree PVC cross is a versatile fitting designed to connect four PVC pipes at right angles, creating a sturdy, four-way junction in a piping system. This cross fitting is essential for applications requiring multidirectional flow, commonly used in water distribution, irrigation, and various fluid handling systems. When paired with PVC solvent cement and cleaner, it provides a secure, leak-resistant connection to ensure efficient system performance.

Key Features

  • Four-Way Connection: Joins four PVC pipes at 90° angles, enabling a reliable four-directional flow.
  • Robust Material: Made from unplasticised polyvinyl chloride (PVC-U), known for its durability, rigidity, and resistance to corrosion.
  • Consistent Pressure Rating: Rated up to 15 bar, suitable for high-performance requirements in demanding systems.
  • Easy Solvent Welding: Compatible with PVC solvent cement for a leak-proof, durable bond.
  • Wide Compatibility: Available in sizes from 1/2 inch to 2 inches, accommodating a range of piping needs.

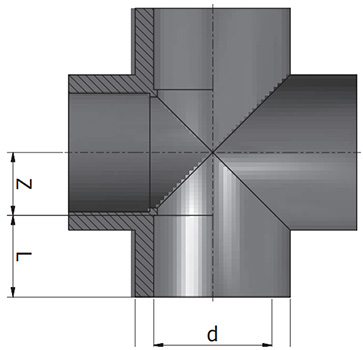

PVC-cross-Diagram


Product Code Nominal Size (inch) L (mm) Z (mm) E (mm)
356714 1/2 16 11 27.5
356716 1 22 17 42
356718 1 1/2 31 26 61
356719 2 38 33 75



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
356714PVCu Cross 90 Plain 1/2" £20.60 78%
£4.53
356716PVCu Cross 90 Plain 1" £25.15 78%
£5.53
356718PVCu Cross 90 Plain 1 1/2" £45.73 78%
£10.06
356719PVCu Cross 90 Plain 2" £68.36 78%
£15.04
