PVC Blanking Flange Table D/E
Useful Information
This PVC blanking flange is drilled to BS 10 Table D & E and is used to bolt off a section of pipework. Solvent cement is required to join the flange and pipe.
Bolt sets are also available.
| Material | Polyvinyl chloride - unplasticised |
| Pressure Rating | 1/2" to 2" = 15 bar at 20°C 3" to 4" = 10 bar at 20°C 6" = 6 bar at 20°C |
| Operating Temperature | 5°C to 60°C |

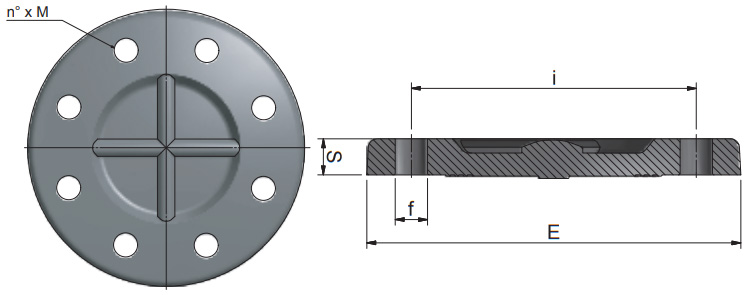

| Product Code | Nominal Size (inch) | Table | E (mm) | S (mm) | I (mm) | f (mm) | No. of Holes |
| 374129 | 1/2 | D / E | 95 | 11 | 67 | 14 | 4 |
| 374130 | 3/4 | D / E | 105 | 12 | 73 | 14 | 4 |
| 374131 | 1 | D / E | 115 | 14 | 83 | 14 | 4 |
| 374132 | 1 1/4 | D / E | 142 | 15 | 88 | 18 | 4 |
| 374133 | 1 1/2 | D / E | 152 | 16 | 98 | 18 | 4 |
| 374134 | 2 | D / E | 165 | 18 | 115 | 18 | 4 |
| 374135 | 3 | D / E | 200 | 20 | 146 | 18 | 4 |
| 374136 | 4 | D | 220 | 22 | 178 | 18 | 4 |
| 374137 | 4 | E | 220 | 22 | 178 | 18 | 8 |
| 374138 | 6 | D / E | 285 | 28 | 235 | 22 | 8 |
Approvals:
 |
WRAS approved Approval number 1705080 |
 |
BSI Kitemark approved Licence number KM60041 |
