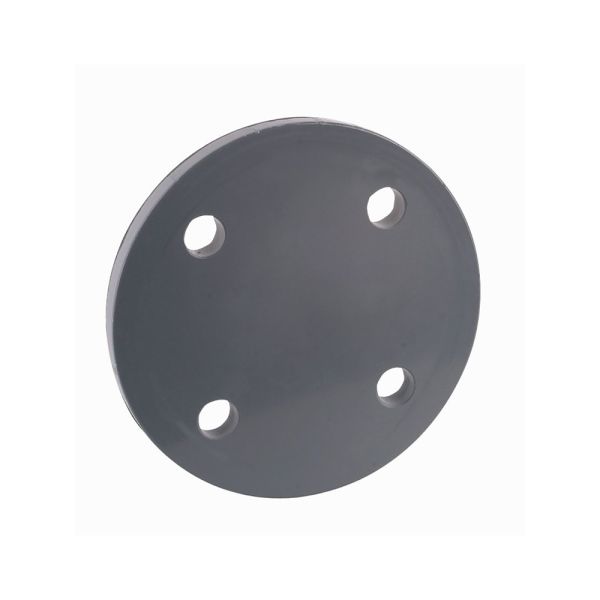

Blanking Flange PN10/16
Useful Information
All text and product images are the intellectual property and copyright of Pipestock Limited
Key Features / Tech Specs & Dimensions:
- Manufacturer: Durapipe
- Size range from 20mm to 400mm
- Operating temperature up to 100°C
- Operating pressure rated to 16 bar
| Product Code | d (mm) | DN (mm) | b (mm) | k (mm) | d2 (mm) | d6 (mm) | D (mm) | No. of Holes | Bolt Size | Nominal Torque (Mnom) | Weight (g) |
| 384069 | 20 | 15 | 12 | 65 | 14 | 28 | 95 | 4 | M12 | 15 | 290 |
| 384070 | 25 | 20 | 14 | 75 | 14 | 34 | 105 | 4 | M12 | 15 | 410 |
| 384071 | 32 | 25 | 14 | 85 | 14 | 42 | 115 | 4 | M12 | 15 | 610 |
| 384072 | 40 | 32 | 16 | 100 | 18 | 51 | 140 | 4 | M16 | 20 | 880 |
| 384073 | 50 | 40 | 16 | 110 | 18 | 62 | 150 | 4 | M16 | 30 | 810 |
| 384074 | 63 | 50 | 19 | 125 | 18 | 78 | 165 | 4 | M16 | 35 | 940 |
| 384075 | 75 | 65 | 19 | 145 | 18 | 92 | 185 | 4 | M16 | 40 | 1210 |
| 384076 | 90 | 80 | 21 | 160 | 18 | 108 | 200 | 8 | M16 | 40 | 1480 |
| 384077 | 110 | 100 | 22 | 180 | 18 | 128 | 220 | 8 | M16 | 40 | 1680 |
| 384078 | 125 | 100 | 22 | 180 | 18 | 135 | 220 | 8 | M16 | 40 | 1570 |
| 384079 | 140 | 125 | 26 | 210 | 18 | 158 | 250 | 8 | M16 | 50 | 2930 |
| 384080 | 160 | 150 | 27 | 240 | 22 | 178 | 285 | 8 | M20 | 60 | 3890 |
| 384081 | 200 | 200 | 28 | 295 | 22 | 235 | 340 | 8 | M20 | 70 | 5810 |
| 384082 | 225 | 200 | 28 | 295 | 22 | 238 | 340 | 8 | M20 | 70 | 5780 |
| 384083 | 250 | 250 | 31 | 350 | 22 | 288 | 395 | 12 | M20 | 80 | 7050 |
| 384084 | 280 | 250 | 31 | 350 | 22 | 294 | 395 | 12 | M20 | 80 | 6560 |
| 384085 | 315 | 300 | 34 | 400 | 22 | 338 | 445 | 12 | M20 | 100 | 10650 |
| 384086 | 355 | 350 | 42 | 460 | 22 | 376 | 515 | 16 | M20 | 160 | 14800 |
| 384087 | 400 | 400 | 46 | 515 | 26 | 430 | 574 | 16 | M24 | 170 | 17740 |
