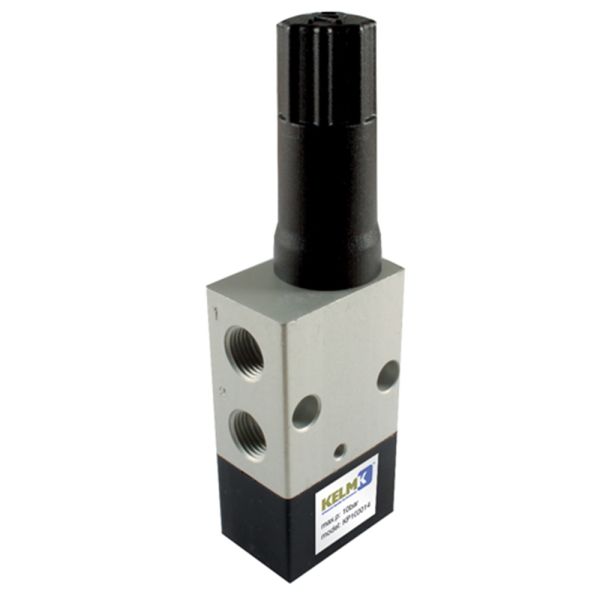

Kelm Normally Open Impulse Valve

Key Features / Tech Specs:

• Manufactured by KELM
• 1/8" port
• Material: Aluminium body, NBR seals
• Working pressure: 30 to 145psi
• Operating temperature: 0°C to 60°C
• Time regulating range: 0-15 seconds
•

Useful Info:

This Normally Open Impulse valve produces an adjustable impulse of fixed duration by adjusting the black handle (R). This allows the user duration control over a signal to port 1 until the signal gets interrupted and the impulse is terminated.

They are complete with a 1/8" port used in conjunction with air and pneumatic systems.

These valves are manufactured from aluminium with brass OT58 internal components, NBR rubber seals and a stainless steel spring.

They require no lubrication, however, will operate in a lubricated or non-lubricated system. The air is to be filtered by 50µm filter element.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
