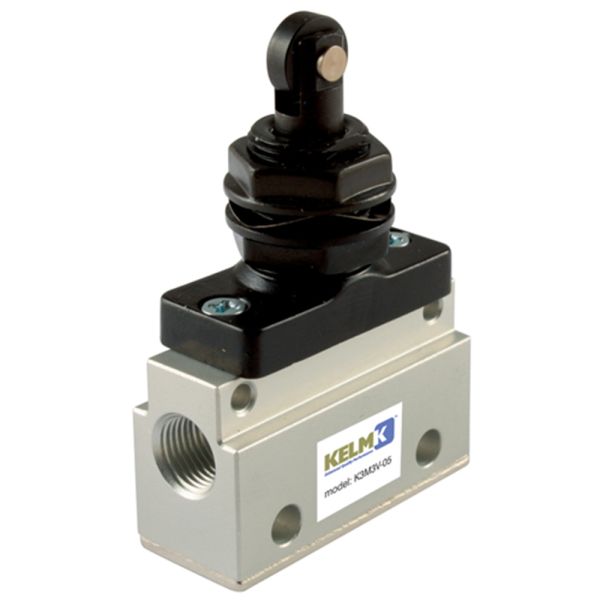

Kelm Roller Valve Metric

Key Features / Tech Specs:

• Manufactured by KELM
• Material: Aluminium alloy body, NBR seals
• Max. Pressure: 10 bar
• Operating Temperature: -20°C to 70°C
• Metric thread
• 3/2 Way
•
• A - Outlet Port
• P - Air Input
• R - Exhaust Port

Useful Info:

This roller valve is complete with M5 metric thread with a 2mm orifice and a Cv value of 0.11. It is used for the manual or mechanical control of air flow within pneumatic systems via the roller plunger. The air is to be filtered by 40µm filter element.

The roller valve is designed to be pressed by an item that will in turn roll over the wheel releasing the pressure on the plunger and exhausting the air out through one of the ports.

Manufactured from a high-quality aluminium alloy with nitrile rubber seals with a working pressure of 0 to 10 bar. They have multiple mounting points for convenient installation and come complete with panel mount locknuts.

These valves require no lubrication and are to be used in conjunction with clean compressed air, manufactured to close tolerance.
