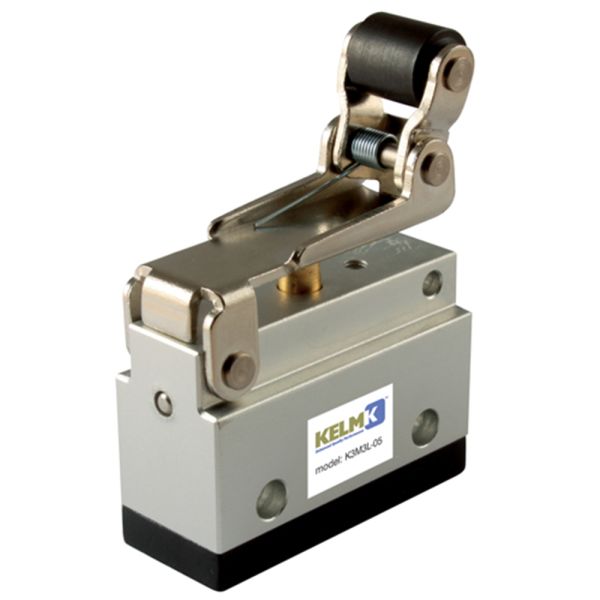

Kelm One Way Roller Lever Valve BSPP

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufactured by KELM
  • Material: Aluminium alloy body, NBR seals
  • Max. Pressure: 10 bar
  • Operating Temperature: -20°C to 70°C
  • BSPP thread
  • 3/2 Way
  • one-way-symbol
    • A - Outlet Port
    • P - Air Input
    • R - Exhaust Port

one-way-roller-lever-bspp-diagram

Useful Info:

This roller valve is complete with BSPP thread with a 2.5mm orifice and a Cv value of 0.14 on the 1/8" fitting and a 15mm orifice and a Cv value of 0.84 on the 1/4" fitting. It is used for the manual or mechanical control of air flow within pneumatic systems via the roller lever. The air is to be filtered by 40µm filter element.

The roller valve is designed to be pressed by an item that will in turn roll over the wheel releasing the pressure on the plunger and exhausting the air out through one of the ports. The one-way lever point of the valve requires the item applying the pressure to approach from one side in particular, in order for it to release the valve pressure after it has passed.

Manufactured from a high-quality aluminium alloy with nitrile rubber seals with a working pressure of 0 to 10 bar. They have multiple mounting points for convenient installation and come complete with panel mount locknuts.

These valves require no lubrication and are to be used in conjunction with clean compressed air, manufactured to close tolerance.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
378593KM PMV One-Way Roller Lever Valve 3/2 Way BSPP 1/8" £77.64 50%
£38.82
378594KM PMV One-Way Roller Lever Valve 3/2 Way BSPP 1/4" £90.92 50%
£45.46
