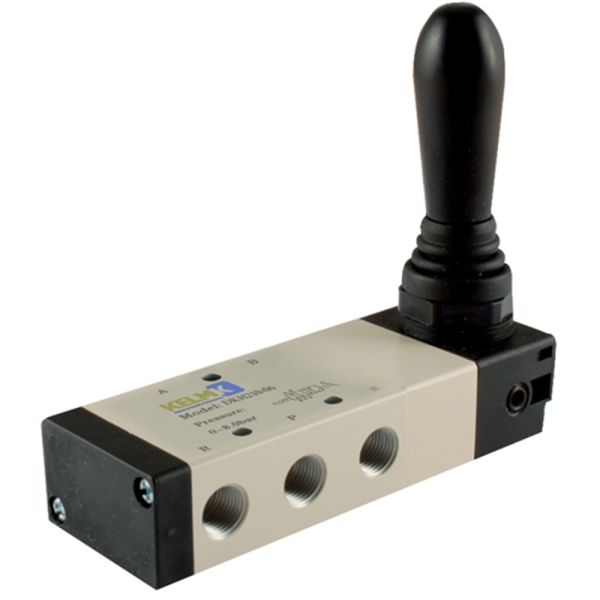

Kelm Lever/Spring/Lever BSPP
Useful Information
Key Features / Tech Specs:
- Manufactured by KELM
- Material: Aluminium alloy body, NBR seals
- Max. Pressure: 8 bar
- Operating Temperature: -20°C to 70°C
- BSPP thread
- 5/3 Way
- A - Outlet Port
- B - Outlet Port
- P - Air Input
- R - Exhaust Port
- S - Exhaust Port
| Product Code | A | B | C | D | E | F | G | H | I |
| 3----- | 100.5 | 76.5 | 32.5 | 22 | 90.5 | 7.5 | 88.5 | 18 | 20 |
| 3----- | 100.5 | 76.5 | 32.5 | 22 | 90.5 | 7.5 | 88.5 | 18 | 20 |
| 3----- | 120 | 92 | 40.5 | 27 | 94 | 8 | 106 | 18 | 24 |
| Product Code | J | K | L | M | N | O | P | Q |
| 3----- | 36 | 18 | 35 | 23.5 | 1/8" | 1/8" | 4.3 | - |
| 3----- | 36 | 21 | 35 | 23.5 | 1/8" | 1/4" | 4.3 | 1.5 |
| 3----- | 45 | 24 | 40 | 27.5 | 1/4" | 3/8" | 4.3 | 2 |
Useful Info:
This lever valve is complete with BSPP thread with a 12.0mm² orifice on the 1/8" and 1/4" fitting, and an 18mm² orifice on the 3/8" fitting. It is used for the manual control of air flow within pneumatic systems. The air is to be filtered by 40µm filter element.
The 3-direction spring lever valve has a fully sealed mid position which locks off the ports and holds the pressure. Turning the lever to the right of centre will allow air through the valve to one port and turning to the left of centre will send it to another port. This can be used as a feed or exhaust allowing the airflow in and holding it there and turning it on the opposite lock to exhaust the pressure. The valve has multiple ports for the accurate control over multiple mechanisms and the lever is spring-loaded so will return to the centre position when released.
Manufactured from a high-quality aluminium alloy with nitrile rubber seals with a working pressure of 0 to 8 bar. They have multiple mounting points for convenient installation and come complete with panel mount locknuts.
These valves require no lubrication and are to be used in conjunction with clean compressed air, manufactured to close tolerance.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
