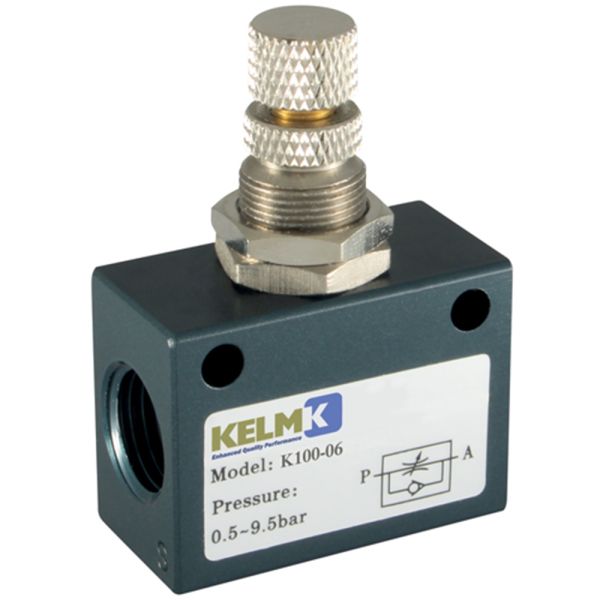

Kelm Flow Control Valve

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufactured by KELM
  • Material: Aluminium alloy body, NBR seals
  • Max. Pressure: 10 bar
  • Operating Temperature: -20°C to 70°C
  • Metric and Imperial BSPP available
  • Uni-directional
  • flow-control-symbol
    • A - Outlet Port
    • P - Air Input

flow-control-diagram


Product Code Model A B C D E F G
3------ K100 22mm 32 1/8" 18mm 23mm 4.3mm 46.8mm
3------ K200 26mm 36 1/4" 23mm 27mm 4.3mm 50.8mm
3------ K300 35mm 50 3/8" 32mm 37mm 4.3mm 65mm
3------ K300 35mm 50 1/2" 32mm 37mm 4.3mm 65mm

Product Code Model H I J K L M N
3------ K100 52.3mm M6 x 0.5mm M12 x 0.75mm 10mm 18mm 26mm 8.6mm
3------ K200 56.3mm M6 x 0.5mm M12 x 0.75mm 13.5mm 18mm 30mm 8.6mm
3------ K300 74mm M8 x 0.75mm M16 x 1mm 17.5mm 28mm 40.5mm 10.2mm
3------ K300 74mm M8 x 0.75mm M16 x 1mm 17.5mm 28mm 40.5mm 10.2mm



Useful Info:

KELM is a rapidly growing fluid power manufacturer with an irrefutable focus on product excellence.

These valves are manufactured from a high-quality aluminium alloy with nitrile rubber seals and have a working pressure of 0 to 10 bar. They are operated by the use of an adjustable knob that allows for the regulation of airflow within the valve.

These valves require no lubrication and are to be used in conjunction with clean compressed air, manufactured to close tolerance.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
378681KM Uni-directional Flow Control Valve BSPP 1/8" £34.28 50%
£17.14
378682KM Uni-directional Flow Control Valve BSPP 1/4" £36.92 50%
£18.46
378683KM Uni-directional Flow Control Valve BSPP 3/8" £76.80 50%
£38.40
378684KM Uni-directional Flow Control Valve BSPP 1/2" £76.80 50%
£38.40
