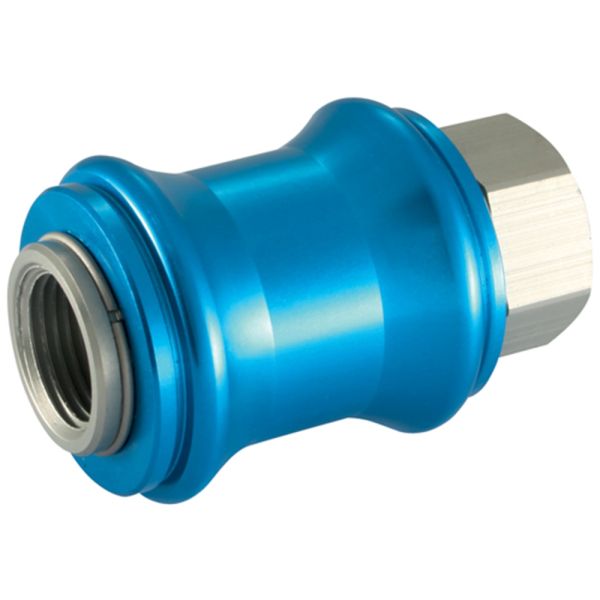

Kelm 3/2 Hand Slide Valve
Useful Information
Key Features / Tech Specs:
- Manufactured by KELM
- Material: Aluminium alloy body, NBR seals
- Max. Pressure: 10 bar
- Operating Temperature: -20°C to 70°C
- Metric and Imperial BSPP available
- 3/2 Way
- A - Outlet Port
- P - Air Input
- R - Exhaust Port
| Product Code | A | B | C | D | E | F |
| 3------ | 30mm | 50mm | 27.5mm | 17mm | 1/8" | 1/8" |
| 3------ | 32.5mm | 58mm | 30mm | 19mm | 1/4" | 1/4" |
| 3------ | 39mm | 68.5mm | 35.5mm | 22mm | 3/8" | 3/8" |
| 3------ | 50mm | 85.5mm | 44mm | 30mm | 1/2" | 1/2" |
| 3------ | 58mm | 96.5mm | 53.5mm | 36mm | 3/4" | 3/4" |
| 3------ | 70mm | 114.5mm | 65.5mm | 44mm | 1" | 1" |
Useful Info:
KELM is a rapidly growing fluid power manufacturer with an irrefutable focus on product excellence.
These valves are manufactured from a high-quality aluminium alloy with nitrile rubber seals and have a working pressure of 0 to 10 bar. They are operated manually by use of the hand slide. The tube is inserted into the input end of the valve and the air is allowed to pass through when the slide is pulled back. These valves are used in conjunction with tools that require air pressure.
These valves require no lubrication and are to be used in conjunction with clean compressed air, manufactured to close tolerance.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
