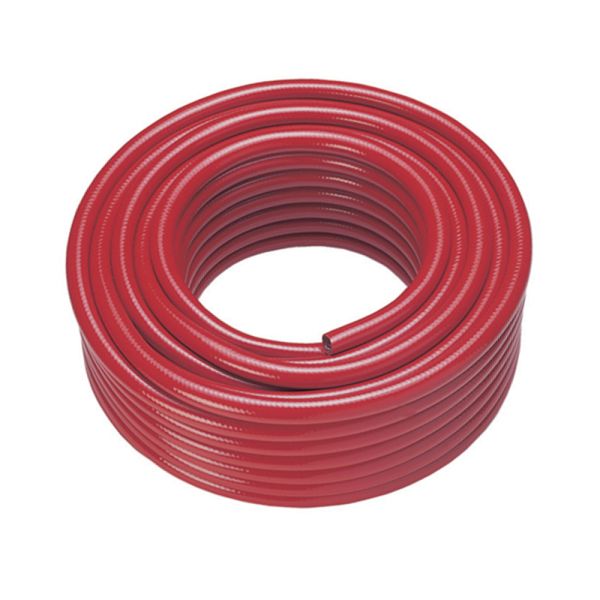

Kelm Polyurethane Ester Tube Red
Useful Information
Key Features / Tech Specs / Dimensions:
- Manufactured by Kelm
- Material: Polyurethane Ester
- Kink and abrasion resistant
- Operating temperature -20°C to +40°C
- Available in sizes up to 100m
Â
Â
| Product Code | Length (m) | Inner diameter (mm) | Outer diameter (mm) | Wall thickness (mm) | Bend Radius (mm) | Max Operating Pressure (psi) | Max Operating Pressure (bar) |
| 365831 | 25 | 2.5 | 4 | 0.75 | 10 | 190 | 13 |
| 365839 | 25 | 4 | 6 | 1 | 20 | 155 | 11 |
| 365845 | 25 | 5.5 | 8 | 1.25 | 30 | 150 | 10 |
| 365851 | 25 | 6 | 8 | 1 | 35 | 120 | 8 |
| 365857 | 25 | 6.5 | 10 | 1.75 | 35 | 125 | 11 |
| 365866 | 25 | 8 | 12 | 2 | 40 | 120 | 10 |
| 365887 | 100 | 2.5 | 4 | 0.75 | 10 | 190 | 13 |
| 365893 | 100 | 4 | 6 | 1 | 20 | 155 | 11 |
| 365899 | 100 | 5.5 | 8 | 1.25 | 30 | 150 | 10 |
| 365905 | 100 | 6 | 8 | 1 | 35 | 120 | 8 |
| 365911 | 100 | 6.5 | 10 | 1.75 | 35 | 125 | 11 |
| 365920 | 100 | 8 | 12 | 2 | 40 | 120 | 10 |
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
Ester tubing should not be used with water or in humid environments.
Extremely flexible and offers excellent bend capabilities making it ideal for pneumatic control or robotic systems.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
