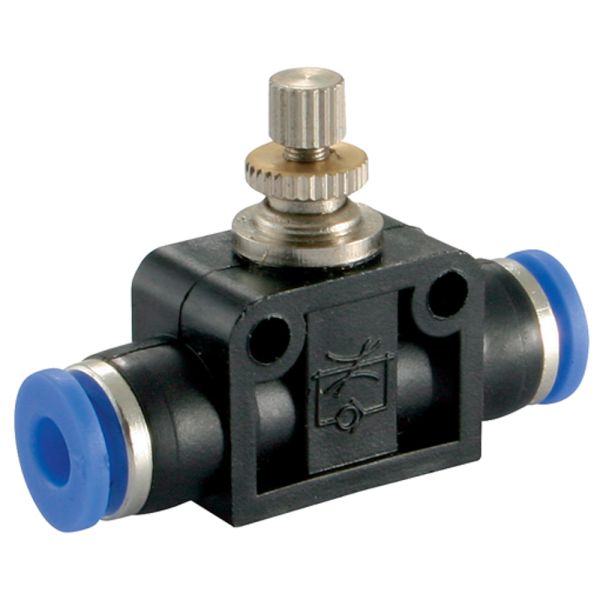

Manual Flow Controller Uni-directional
Useful Information
Key Features / Tech Specs:
- Material: Nickel Plated Brass
- Media: Air and Vacuum Only
- Tube x Tube
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D (mm) | D1 (mm) | B (mm) | C (mm) | d (mm) | F (mm) | J (mm) | S (mm) |
| 366521 | 4 | 10 | 48 | 15.5 | 4 | 8.7 | 19.4 | 10.5 |
| 366522 | 6 | 12.8 | 49 | 15.6 | 4 | 7.9 | 19.4 | 11.1 |
| 366523 | 8 | 13.8 | 55.1 | 18 | 4 | 9 | 21 | 12 |
| 366524 | 10 | 16.8 | 63 | 20 | 4 | 10.1 | 25 | 12.2 |
| 366525 | 12 | 19.8 | 75 | 21 | 4 | 12.8 | 31.3 | 15.6 |
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
